API 610 Centrifugal Pump
Home » Products » API 610 Centrifugal Pump
What is an API 610 Centrifugal Pump?
An API 610 centrifugal pump is a heavy-duty process pump designed, manufactured, and tested in strict compliance with the API 610 standard published by the American Petroleum Institute. This globally recognized specification sets the highest benchmark for reliability, safety, and performance in the petroleum, petrochemical, and natural gas industries. Pumps built to this standard are engineered for continuous, trouble-free operation under severe conditions—handling high temperatures, high pressures, corrosive or hazardous fluids. The standard mandates rigorous requirements for materials, hydraulics, shaft sealing, bearings, and testing. Choosing an API 610 pump means investing in exceptional durability, minimized lifecycle costs, and maximum operational safety for your most critical services.
Why Choose Tengyu API 610 Pumps?
As a specialized manufacturer has over 40 years’ experience in the field, Tengyu engineers these pumps to meet the rigorous API 610 standards, ensuring they perform under the most extreme conditions in oil, gas, and chemical processing.

  • Designed to operate for at least 20 years of service life.
  • With a minimum of 3 years of uninterrupted operation.
  • Utilizing advanced European hydraulic models to ensure high efficiency and low NPSH requirements.
  • Offering a wide range of metallurgy tailored to your specific media.
  • Every Tengyu API 610 pump undergoes stringent factory testing before shipment.
API 610 Pump Types (OH / BB / VS)
2

OH Type (Overhung)

Single-stage pumps with the impeller mounted on the end of a cantilevered shaft. Compact and versatile, they are ideal for a wide range of general process services with moderate pressures.

Primary Applications: Refinery light hydrocarbons, intermediate distillates, hot oil circulation; various process fluids in chemical plants; water supply and general transfer services.
2

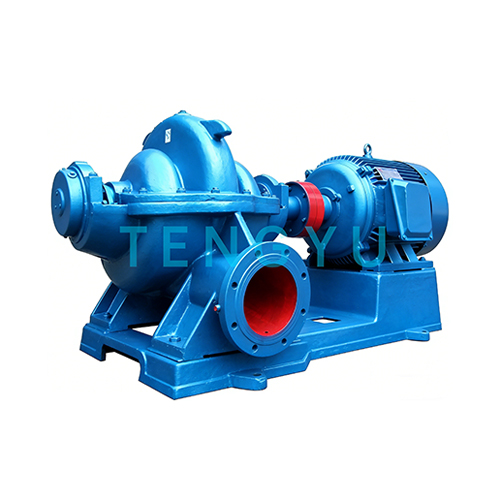

BB Type (Between Bearings)

Multi-stage or high-pressure single-stage pumps where the impeller(s) are located between two radial bearings. This design provides exceptional stability and is the preferred choice for high-pressure, high-temperature, or high-duty cycle applications like boiler feed or pipeline transfer.

Primary Applications: Boiler feedwater, high-pressure injection, pipeline transfer, reactor charge pumps, large-scale circulation pumps.
3

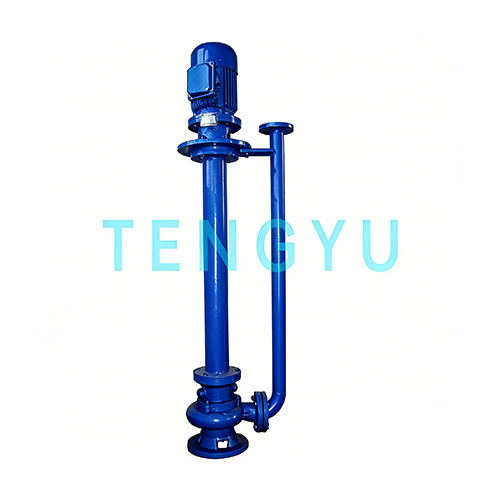

VS Type (Vertically Suspended)

Pumps with a vertical shaft and submerged impeller, commonly used in sump, tank, or cooling water services. Their unique design saves valuable floor space and handles fluids with entrained vapors effectively.

Primary Applications: Condensate extraction, underground drain sumps, tank farm unloading/transfer, seawater lift, cooling tower circulation, pumping light hydrocarbons with flash gases.
Core Technical Advantages
The technical superiority of an TENGYU API 610 pump lies in its fundamental design philosophy, which prioritizes ultimate reliability under severe service conditions and optimized total cost of ownership. Its advancements are not about single features but are embedded in a systematic engineering approach across design, materials, and manufacturing.

Heavy-Duty Design per Stringent Standards

All critical pressure-containing components (e.g., casing, covers) are designed and validated per ASME Boiler and Pressure Vessel Code rules, ensuring integrity against maximum allowable working pressure and thermal shock. Bearing systems feature heavy-duty designs with calculated L10 life far exceeding general-purpose pumps, and are standard-equipped with temperature monitoring points.

Advanced Rotordynamics Engineering

This is the core of high-reliability pumps. We conduct professional rotordynamic analysis to ensure the first critical speed is well above the operating speed range and to strictly control running vibration levels. For high-speed or multi-stage pumps, this prevents structural failures caused by resonance.


Full-Range Hydraulic Performance

Impellers and casings utilize hydraulically optimized profiles validated by Computational Fluid Dynamics (CFD). The focus is not only on best efficiency point performance but also on ensuring smooth, cavitation-free operation across the entire allowable operating range, preventing vibration and component damage from internal recirculation.

Modularity & Maintainability Design

Features like centerline support (per API) and fully cartridge-mounted rotating assemblies allow the pump to maintain alignment despite thermal growth. Standardized critical components (e.g., wear rings, bearings) enable fast on-site maintenance and replacement, significantly reducing Mean Time To Repair (MTTR).

Systematic Sealing Solutions

Integrating API 682 standards, we provide complete sealing systems from single, tandem, to double mechanical seals, configurable with Plan flush, cooling, and monitoring systems. This OEM-integrated approach addresses seal failure, a primary source of pump downtime, at its root.
Applications
  • Petroleum & Petrochemical
    As the "workhorse pumps" in refineries and petrochemical plants, they are extensively used in key units such as crude distillation, catalytic cracking, hydrocracking, and reforming, reliably handling hot oil products, LPG, various solvents, and intermediates.
  • Power Industry
    They are critical components in thermal power plant boiler feedwater systems, as well as for condensate extraction and circulating water services. In nuclear power plants, they handle demineralized water, boric acid solutions, etc., complying with the highest safety and quality standards.
  • Chemical Industry
    Within base chemical (ethylene, propylene, methanol) and modern coal chemical (coal-to-liquids, coal-to-olefins) plants, they transport high-temperature, high-pressure, flammable, explosive, or toxic process fluids, forming the core of safe and continuous operation.
  • Fine Chemicals & Pharmaceuticals
    In the production of high-value specialty chemicals and active pharmaceutical ingredients (APIs), they handle high-purity, valuable, or highly corrosive media. Their reliable sealing and material compatibility prevent contamination and leakage risks.
 Service & Support

Professional Solution Design & Selection Support

We offer free fluid compatibility analysis, operating condition evaluation, and precise product selection. Our team of application engineers ensures the optimal and most cost-effective pump and material solution for you.



Rigorous Quality Control & Testing

Every pump undergoes strict performance and leak tests before shipment. We provide key material documentation and performance curves, with full traceability.





Global Installation Guidance & Commissioning Support

We supply detailed installation/operation manuals and video guides in Chinese/English. For complex projects, we offer on-site or remote commissioning support for smooth start-up.




Efficient After-sales Service & Parts Supply

We promise a rapid technical response within 12 hours and supply a full range of genuine spare parts to ensure your continuous operation. Operation and maintenance training is also available.


 FAQs

  • Q What exactly does "API 610 compliant" mean?

    A

    It means the pump is designed, manufactured, tested, and documented in full accordance with the latest edition of the API 610 standard published by the American Petroleum Institute. This covers every aspect from materials and dimensions to performance tolerances, mechanical seal requirements, and testing procedures, ensuring a benchmark of reliability for critical services.

  • Q What is the main advantage of choosing an API 610 pump over a standard industrial pump?

    A

    The primary advantage is maximum reliability and operational safety in demanding conditions. API 610 pumps are engineered with more robust components, stricter design rules, and rigorous testing to prevent failures in continuous, severe services, thereby minimizing unplanned downtime and associated risks.

  • Q How do I know if my application requires an API 610 pump?

    A

    It is typically required for services involving flammable, toxic, or high-value fluids; operating at high pressures/temperatures; or in continuous operation where failure consequences are severe. Common industry specifications for refineries, chemical plants, and pipelines often mandate API 610 pumps for such critical duties.

  • Q Can Tengyu customize an API 610 pump for specific site conditions?

    A Absolutely. While adhering to the standard's core requirements, we offer extensive customization. This includes material upgrades for corrosion/erosion, specific sealing arrangements, nozzle orientations and ratings, and coating specifications to perfectly match your process and site layout.

  • Q What is the most common cause of failure, and how is it mitigated?

    A Bearing and seal failures are among the most common issues, often linked to improper lubrication, misalignment, or dry running. Our pumps mitigate this with robust bearing housing designs, recommended lubrication systems, and API-plan sealing systems with monitoring connections. Proper operation and maintenance are equally vital.

  • Q What kind of training or operational support do you provide?

    A We offer comprehensive training programs covering pump principles, operation, troubleshooting, and maintenance. This can be conducted at our facility, your site, or via digital platforms. Our goal is to ensure your team has the knowledge for optimal and safe pump management.
