What is an Agitator?

An industrial agitator is the driving force behind efficient mixing in process vessels. It goes beyond simple stirring to perform critical tasks: achieving a uniform blend, keeping solids in suspension, dispersing gases or immiscible liquids, and accelerating heat transfer or chemical reactions. Tengyu's agitators are engineered for reliability and precision, ensuring optimal process results in demanding applications across chemicals, pharmaceuticals, water treatment, and beyond.

Types of Agitators

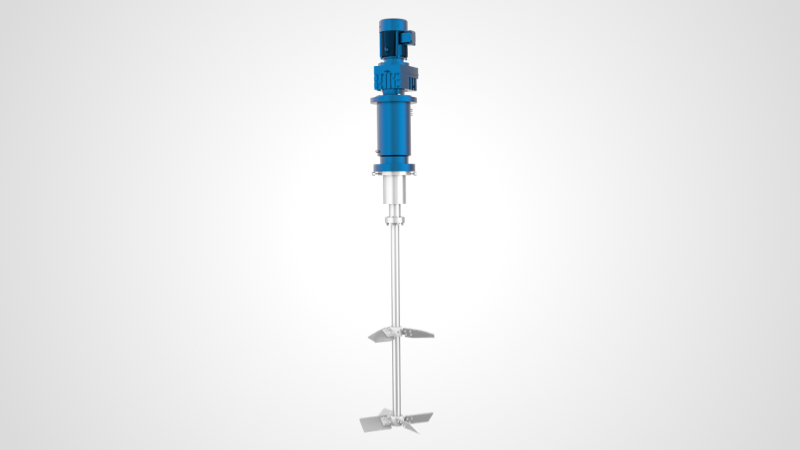

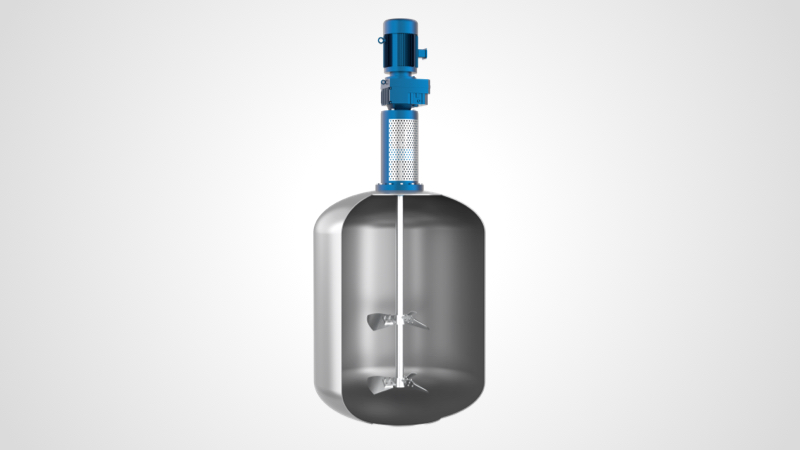

Top Entry Agitator

Core Advantage: High versatility, robust structure, easy maintenance.

Typical Application: Reactors, mixing vessels, general processes.

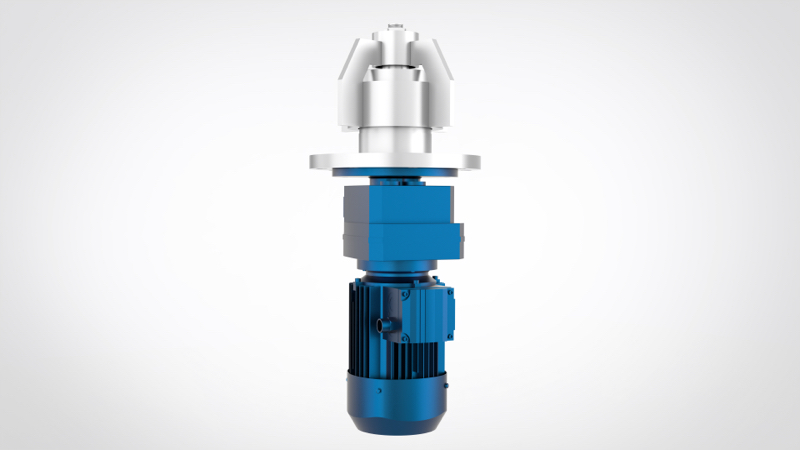

Bottom Entry Agitator

Core Advantage: Saves top space, prevents bottom settling.
Typical Application: Crystallizers, fermenters, drainable tanks.

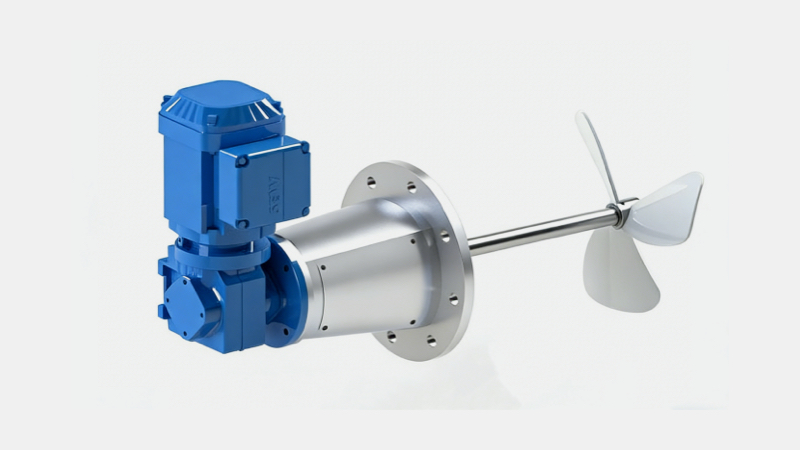

Side Entry Agitator

Core Advantage: Ideal for large tanks, energy-efficient, flexible installation.
Typical Application: Large crude oil/chemical storage tanks, water treatment basins.

Magnetic Safety Agitator

Core Advantage: Absolute zero leakage, ultimate safety.
Typical Application: Toxic, hazardous, high-purity or valuable media.

Simulations and Advanced Design of Agitators

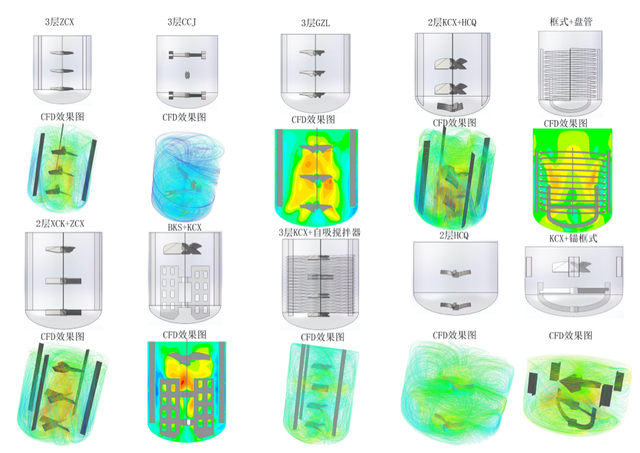

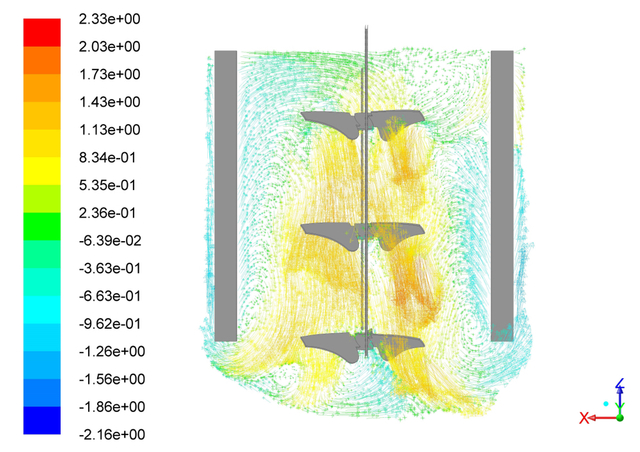

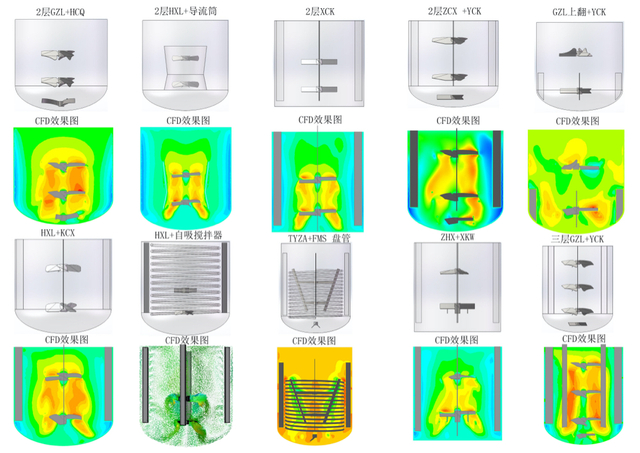

At Tengyu, we integrate advanced simulation software and computational tools at the core of our agitator design process. Utilizing techniques like Computational Fluid Dynamics (CFD), we meticulously model fluid flow, shear rates, and power consumption for each application. This simulation-driven approach allows us to optimize impeller geometry, predict performance accurately, and eliminate costly trial-and-error. The result is a precisely engineered agitator where maximum efficiency, reliability, and process results are built in from the start, ensuring optimal operation for your specific duty.

Quality Assurance & Manufacturing

Raw Material

At the raw material stage, every batch of incoming steel, specialty alloys, and sealing materials undergoes spectroscopic analysis and mechanical property testing to ensure full compliance with design specifications.

Machining and Fabrication

During the machining and fabrication phase, guided by nearly four decades of process expertise, we adhere to a stringent precision manufacturing protocol. For core components such as impellers and agitator shafts, we employ advanced forming and finishing techniques to guarantee that geometric accuracy, surface integrity, and material properties fully meet design specifications.

Process and Final Testing

For process and final testing, we conduct full inspections of dimensional tolerances and perform comprehensive performance validation on dedicated test rigs. This includes seal pressure tests, full-load run-in tests, and vibration analysis under simulated operating conditions. This rigorous process ensures that every unit we deliver is built on nearly four decades of proven reliability.

FAQs

Q What is the main advantage of a Magnetic Safety Agitator over a conventional mechanically sealed agitator?

A The primary advantage is absolute containment. By eliminating the mechanical shaft seal—the most common potential leak point—it guarantees zero leakage. This makes it the only safe choice for handling extremely hazardous, toxic, expensive, or sterile fluids.
Q When should I choose a Side Entry Agitator?

A Choose a Side Entry Agitator primarily for large-volume blending in storage tanks or ponds (e.g., for crude oil, fuels, chemicals, or water). It's ideal when top or bottom mounting isn't feasible and is excellent for preventing stratification and maintaining homogeneity with high energy efficiency.
Q What is the key benefit of a Bottom Entry Agitator design?

A Its key benefit is freeing up the vessel top head. This is crucial for tanks requiring frequent cleaning, multiple top nozzles, or complete drainage. The design also minimizes bottom sedimentation and offers excellent stability due to a short shaft.
Q How do I select the right impeller type for my mixing process?

A Impeller selection depends on your primary process objective (e.g., blending, suspending solids, dispersing gases). Common types include axial flow impellers (e.g., hydrofoils) for efficient bulk blending and radial flow impellers (e.g., Rushton turbines) for high shear dispersion. We provide expert selection support based on your fluid properties and process goals.
Q Can your agitators handle high-viscosity or non-Newtonian fluids?

A Yes. For high-viscosity, shear-thinning, or pasty materials, we recommend specific impeller designs like helical ribbons or anchors paired with robust Top Entry drives. These create the necessary combination of bulk motion and wall scraping for effective mixing.
Q What sealing options are available, and how do I choose?

A We offer a full range, from packing glands (for simple, non-hazardous services) to single and double mechanical seals (for volatile or hazardous fluids). For the ultimate in safety, the Magnetic Drive requires no seal. Selection is based on fluid hazard, pressure, temperature, and regulatory requirements.
Q How important is agitator motor power and speed selection?

A It's critical for both performance and cost. Underpowering leads to failed processes; overpowering wastes energy and costs. We use advanced simulation to determine the optimal power and speed required to achieve your mixing result efficiently, often incorporating variable frequency drives (VFDs) for flexibility.
Q Can you provide agitators for corrosive or abrasive services?

A Absolutely. We construct agitators using a wide range of corrosion-resistant alloys (e.g., 316L SS, Hastelloy, duplex steels), apply protective linings (e.g., rubber, glass), or fabricate from solid plastics (e.g., PP, PVDF). For abrasion, we specify hardened materials and wear-resistant coatings on components like impellers.
Q What is your design process to ensure the agitator meets my specific needs?

A Our process is collaborative and engineering-driven. It starts with a detailed application questionnaire to understand your process, fluid, and vessel. Our engineers then leverage CFD analysis and empirical data to model performance, select optimal components, and provide a detailed proposal with performance predictions before manufacturing begins.
Q What maintenance is typically required for an industrial agitator?

A Routine maintenance focuses on the seal system (if applicable), gearbox lubrication, and bearing condition monitoring. Magnetic Safety Agitators require significantly less maintenance as they have no seal to wear out. All designs benefit from regular vibration checks and following the manufacturer's lubrication schedule.
