XZA/XZE
Tengyu Brand

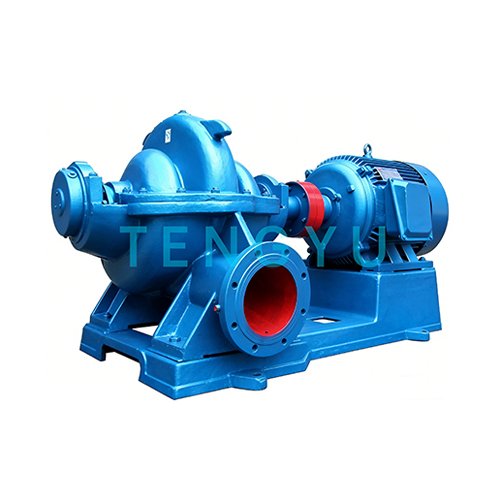

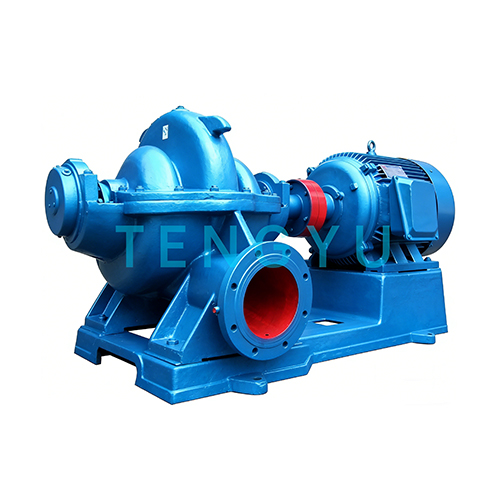

The API 610 BB1 axially split double-suction centrifugal pump strictly complies with API 610 (12th edition)/ISO 13709 standards. It is a core fluid transport device in demanding industrial fields such as petroleum, petrochemical, and power generation. It is designed for medium to high pressure, high flow rate, and long-term stable operation, adaptable to various industrial media, and offers convenient maintenance and high energy efficiency.
Core Advantages:
• Standard Compliance: Fully compliant with authoritative standards such as API 610 12th edition and API 682 4th edition, meeting stringent industrial requirements for sealing, vibration, and balance, and suitable for heavy-duty applications.
• Convenient Structure: The axially split design allows for maintenance without disassembling pipes and motors, significantly reducing downtime and maintenance costs; the double-suction impeller balances axial thrust, resists cavitation, and has a long service life.
• High Efficiency and Stability: Optimized impeller design achieves an efficiency of 75%-92%, resulting in lower energy consumption; modular components and standardized parts ensure high interchangeability, reliable operation, and a long mean time between failures (MTBF).
• Flexible Adaptability: Materials can be selected as needed (cast iron, cast steel, stainless steel, etc.), parameters can be customized, adaptable to various media and operating conditions, highly versatile.
Key Parameters (Standard Range)
• Flow Rate: 10~10000 m³/h (customizable up to 18000 m³/h)
• Head: 10~250 m (customizable up to 260 m)
• Medium Temperature: -40℃~200℃ (high temperature customizable up to 280℃)
• Working Pressure: ≤10 MPa, suitable for medium and high pressure scenarios
• Compatible Media: Crude oil, clean water, chemical solvents, lightly solidified slurries, etc.
Applicable Scenarios: Widely used in petroleum and petrochemical (crude oil transfer, refining circulating water), power (boiler feedwater, circulating water), chemical, metallurgical mining, municipal environmental protection, and other fields, especially suitable for critical processes with continuous operation and high cavitation resistance requirements.
Quality and Service: Raw materials undergo rigorous testing, and all products are fully tested before leaving the factory. A 12-month warranty is provided. We offer professional selection, installation, and commissioning technical support, 24-hour after-sales response, and long-term spare parts supply to ensure stable equipment operation throughout the entire process.
