Specifying rotating equipment for aggressive chemical applications presents a high-stakes reality for plant engineers and facility managers. Standard ANSI pumps often fall short in high-temperature, high-pressure, or highly corrosive environments. These demanding operations require uncompromising structural integrity to prevent catastrophic leaks and costly unexpected downtime. When transferring volatile hydrocarbons or acidic solutions, a simple mechanical failure quickly escalates into a severe safety incident. Selecting the right equipment is not just about meeting a basic mechanical standard on paper. It is about actively balancing initial capital expenditure with operational safety, environmental compliance, and long-term Mean Time Between Failures (MTBF). You must carefully evaluate every material grade, casing thickness, and design choice to protect your facility. This article provides a comprehensive technical evaluation framework to help you confidently navigate complex vendor proposals. We will explore how structural configurations and seal engineering separate true heavy-duty solutions from light-duty alternatives. Readers will learn exactly how to assess critical components to ensure maximum reliability in harsh processing environments.
Material matching is non-negotiable: Specifying standard API 610 centrifugal pump materials (e.g., S-class vs. A-class vs. D-class) strictly depends on fluid corrosivity, temperature limits, and specific gravity.
Construction dictates reliability: Casing thickness, bearing housing design, and nozzle load capacities separate true heavy-duty applications from light-duty alternatives.
Seals define safety: A chemical process pump is only as safe as its seal chamber (typically integrating API 682 standards).
Verify before buying: Always require Material Test Reports (MTRs) and verifiable performance testing (hydrostatic and NPSH) in the evaluation stage.
Plant operators constantly weigh standard chemical pumps against the robust requirements of refining and petrochemical processing. A standard chemical process pump might handle light acids efficiently at ambient temperatures. However, it will degrade rapidly under extreme heat, volatile fluid conditions, or high system pressures. The business cost of unexpected downtime in a continuous process plant often reaches tens of thousands of dollars per hour. Furthermore, hazardous leaks invite severe regulatory fines, environmental remediation costs, and unacceptable safety incidents. You need a design engineered for absolute containment.
The baseline advantages of this heavy-duty design offer immediate structural superiority over conventional foot-mounted pumps. For instance, centerline support accommodates thermal expansion safely and symmetrically. This critical feature prevents destructive shaft misalignment when transferring fluids at extreme temperatures. Standard foot-mounted designs tend to push the casing upward during thermal expansion, destroying bearings and seals. Additionally, heavier casings provide a substantial corrosion allowance. They also absorb heavy piping loads safely without transferring stress to the rotating elements.
Higher initial material and construction costs often deter buyers during the procurement phase. However, these investments pay off exponentially through extended MTBF. You will experience drastically reduced maintenance interventions in highly corrosive environments. Replacing a failed ANSI unit multiple times over five years consumes massive labor and maintenance budgets. A robust lifecycle perspective proves the value of heavy-duty engineering. The continuous, uninterrupted runtime easily justifies the premium construction.
Material selection dictates equipment survival. Selecting proper API 610 centrifugal pump materials determines how long your asset will withstand aggressive chemical attacks. You must navigate the standard material classification matrix carefully, as matching the metallurgy to fluid corrosivity, temperature limits, and specific gravity is non-negotiable.
Standard Material Classification Matrix
Classification Class | Primary Material Type | Typical Application Scenarios |
|---|---|---|
S-Classes | Carbon Steel & Cast Iron | Non-corrosive fluids, baseline chemical transfers, and standard hydrocarbons. |
C-Classes | 12% Chrome | Mid-tier resistance, often used for mildly aggressive or high-temperature hydrocarbons. |
A-Classes | Austenitic Stainless Steel (316L) | The primary workhorse for standard corrosive chemical processes. |
D-Classes | Duplex & Super Duplex Stainless | Essential for pitting resistance in high-chloride, highly acidic, or sour water environments. |
Compliance ensures baseline material integrity across the entire fluid boundary. You must demand NACE MR0175/ISO 15156 compliance for sour gas or sour fluid applications. This standard dictates strict hardness limits to prevent sulfide stress cracking in hydrogen sulfide environments. Positive Material Identification (PMI) also plays a critical role during vendor evaluation. PMI testing utilizes X-ray fluorescence to guarantee the alloy composition matches your exact specifications before shipment.
Implementation risk remains high during the specification phase if fluid data is inaccurate. Over-specifying materials wastes your critical capital budget unnecessarily. For example, selecting Super Duplex for a clean, ambient-temperature water transfer offers zero practical benefit. Conversely, under-specifying invites catastrophic corrosion failure, rapid wall thinning, and facility shutdowns. Always base your material choices on highly accurate, verified fluid properties and consult specialized metallurgists when necessary.
Vendor proposals often look deceptively similar on paper. You must scrutinize the mechanical configurations of an API 610 pump before issuing a purchase order. The structural framework determines how well the equipment handles internal hydraulic stress and external piping forces.
Consider these primary pump configurations when evaluating plant layout and fluid requirements:
Overhung (OH2, OH3): These models work best for standard chemical transfer applications. They fit well in tight footprint constraints while still providing robust centerline support.
Between Bearings (BB1, BB2, BB3): You need these configurations for high-flow, high-pressure, multistage chemical injection. The dual bearing support stabilizes the rotor under extreme hydraulic loads.
Vertically Suspended (VS4, VS6): Engineers evaluate these for deep sump pit extraction. They also solve challenging low Net Positive Suction Head available (NPSHa) scenarios in complex piping systems.
Beyond basic configurations, nozzle loading capacities demand close attention. The standard mandates heavier wall thicknesses across the casing. This design provides a strict minimum 3mm corrosion allowance, ensuring the pressure boundary remains safe even after years of operation. Thicker casings also support much higher allowable piping loads. You prevent dangerous casing distortion and internal rubbing by demanding these heavy-duty walls.
Rotor dynamics directly impact mechanical seal performance. Require stiff shafts featuring a low L³/D⁴ ratio (where L is the cantilevered shaft length and D is the shaft diameter). This stiffness minimizes shaft deflection at the mechanical seal faces during off-design operation. It prevents premature seal leakage. Additionally, verify standard bearing life requirements. The bearing housings must guarantee a minimum of 25,000 continuous operating hours.
The seal chamber functions as your primary defense against hazardous fluid leaks. A heavy-duty casing means absolutely nothing if the fluid escapes along the rotating shaft. The standard strictly mandates generous, specific seal chamber dimensions. These larger dimensions easily accommodate advanced API 682 mechanical seals. Integrating API 682 ensures robust, standardized containment across all vendor platforms, simplifying future maintenance and inventory management.

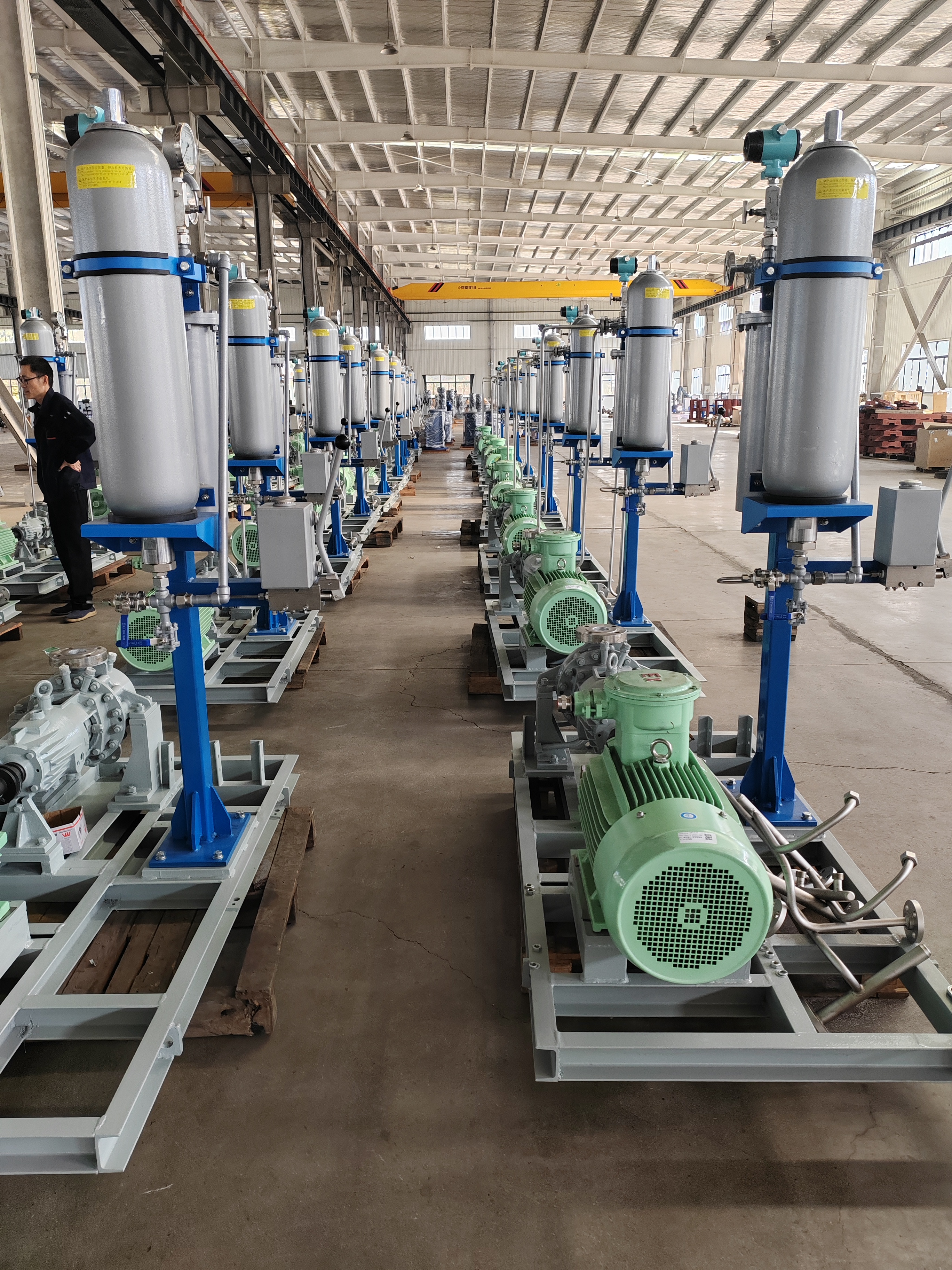

Handling aggressive fluids requires rigorous seal evaluation. Toxic, carcinogenic, or highly flammable chemicals demand zero fugitive emissions. You should evaluate dual mechanical seals carefully to achieve this goal. A Plan 52 configuration uses an unpressurized buffer fluid to capture inner seal leakage. A Plan 53 configuration utilizes a pressurized barrier fluid system. Plan 53 guarantees that any minor seal leakage moves inward into the process, keeping dangerous chemicals securely inside the casing.
You must also assess the vendor's proposed seal support systems. Vendors must align flushing and cooling plans based on the specific heat, vapor pressure, and crystallization properties of the fluid. High specific heat fluids require robust heat exchangers in the seal flush loop. Crystallizing liquids might require external steam quenches to prevent solids from destroying the delicate seal faces. Proper flushing keeps the seal faces clean and cool, ensuring a long operational lifespan.
Reading between the lines of a vendor proposal requires technical diligence. You must evaluate the quote far beyond the bottom-line price. Check if the proposed baseplate is truly compliant with heavy-duty standards. Many vendors substitute cheaper, flimsy fabrications to lower their bids. A weak baseplate ruins shaft alignment, increases vibration, and destroys bearings prematurely.
Mandatory testing prevents defective units from reaching your site. You must specify non-negotiable tests before approving shipment:
Hydrostatic testing: The manufacturer must pressurize the casing at 1.5 times the maximum allowable working pressure to verify structural integrity.
Performance testing: Validate the head, flow, hydraulic efficiency, and vibration levels across multiple points against the approved curve.
NPSH testing: This confirms the exact cavitation margins required to protect the impeller from destructive vapor bubble collapse.
Your next steps should focus on rigorous process documentation. Prepare a robust Request for Quotation (RFQ) that leaves no room for assumptions. Include complete, accurate fluid data sheets detailing maximum operating temperatures and trace contaminants. Demand required material certificates upfront in the proposal stage. Finally, insist on a detailed Inspection and Test Plan (ITP) to guarantee manufacturing transparency and establish clear hold points for your inspectors.
Selecting heavy-duty chemical transfer equipment is an exercise in strict risk mitigation. It also drives successful, long-term asset management. You cannot cut corners when processing explosive or highly corrosive liquids. Precise material selection forms the foundation of facility safety and continuous output. Uncompromising construction standards, rigid bearing housings, and robust seal chambers are the only ways to guarantee long-term operational integrity. Always verify vendor claims against tangible testing data and material certificates.
We encourage engineers and procurement teams to collaborate deeply during the specification phase. Consult specialized manufacturers to map your specific chemical profiles accurately. Compare your fluid data directly against official standard material charts to prevent costly errors. Taking these meticulous steps ensures your facility runs safely and efficiently for decades.
A: A-8 uses Austenitic Stainless Steel (like 316L). It provides solid resistance for standard corrosive chemicals. D-1 utilizes Duplex Stainless Steel. Duplex offers superior resistance to chloride stress corrosion cracking and pitting. D-1 costs more upfront but survives much longer in harsh, high-chloride environments.
A: While ANSI pumps work well for light-to-moderate duties, they lack structural rigidity. You strictly require the heavy-duty standard for higher pressures, extreme temperatures, and explosive or toxic risks. The heavier casings and robust bearing housings prevent catastrophic failures in these severe conditions.
A: The standard strictly mandates a minimum corrosion allowance of 3.0 mm (0.12 inches) for pressure casings. This extra thickness ensures the casing maintains its structural integrity and pressure containment capabilities even after years of continuous exposure to corrosive chemical fluids.
A: You must require Certified Material Test Reports (CMTRs) from the vendor. Additionally, mandate Positive Material Identification (PMI) testing during the final inspection phase. PMI uses X-ray fluorescence to confirm the exact chemical composition of the alloy before the unit ships to your facility.
