Handling fluid dynamics in massive industrial vessels requires precise engineering and rigorous planning. Standard blending methods quickly fail when applied to these immense volumes, risking product degradation and severe equipment wear. The primary engineering challenge lies in achieving uniform blending and preventing bottom sludge in massive-volume tanks without incurring prohibitive energy or infrastructure costs. Plant operators frequently face the difficult dilemma of maintaining constant fluid suspension while trying to avoid excessive power consumption or complex structural retrofits.
How do you resolve this bottleneck? You must carefully evaluate, specify, and procure high-capacity mixing systems built specifically for these extreme industrial environments. This guide provides process engineers and procurement teams a strict, evidence-based framework for making optimal equipment decisions. You will discover how to scrutinize vendor performance claims, mitigate severe implementation risks, and deploy robust mixing solutions tailored to your unique operational needs.
Side entry agitators offer significantly lower capital expenditure (CAPEX) and structural requirements compared to top-entry mixers for tanks exceeding 100,000 gallons.
The primary points of failure and maintenance downtime revolve around mechanical seals; built-in shut-off mechanisms are non-negotiable for large-scale continuous operations.
Selecting the right impeller design (e.g., advanced hydrofoils) and mounting angle dictates mixing efficiency and determines long-term energy consumption (OPEX).
Vendor evaluation must include verifiable Computational Fluid Dynamics (CFD) modeling to guarantee thrust-to-volume ratios meet specific fluid rheology needs.

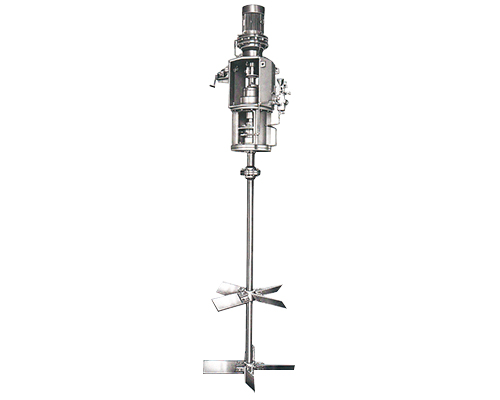

Process engineers must first determine the volumetric feasibility of their storage vessels before selecting a mixing technology. Top-entry mixers often encounter severe structural limitations on massive API storage tanks. Roof mounting becomes structurally impossible or cost-prohibitive once a vessel exceeds certain diameter thresholds. Thin tank roofs cannot support the extreme dynamic loads generated by heavy gearboxes and long overhung shafts. A well-engineered side entry agitator bypasses this limitation entirely by utilizing the rigid lower shell of the tank for robust structural support.
You must also break down the precise CAPEX versus OPEX realities of your project. Side-entry models require a significantly lower initial investment. They utilize shorter shaft lengths and eliminate the need for expensive structural roof bridge mounts. However, you must optimize their placement carefully. Incorrect positioning leads to stagnant dead zones, which ultimately increases operational costs by extending necessary blending times. When properly angled, they offer an unbeatable cost-to-benefit ratio for massive volumes.
Finally, consider the long-term maintenance accessibility. Side-mounted units offer a massive ground-level maintenance advantage. Technicians can access motors, gearboxes, and seals directly from a standard platform. You completely eliminate the need for heavy cranes. You also remove the hazards associated with high-angle confined space entry during routine motor inspections. This ground-level access drastically reduces maintenance downtime and improves overall plant safety.
Heavy hydrocarbons present unique rheological challenges. Operators must actively prevent Bottom Settling and Water (BS&W) buildup. If sludge accumulates, it drastically reduces the usable storage volume of the tank and corrodes the floor plates. To combat this, a specialized crude oil tank agitator usually incorporates a swivel-angle configuration. This variable angle design allows the unit to sweep the tank floor effectively across multiple trajectories. By periodically shifting the thrust vector, the system successfully resuspends heavy hydrocarbons and stubborn sediment back into the bulk fluid.
Compliance and safety remain paramount in these environments. Any equipment installed on hydrocarbon vessels must strictly adhere to API 650 tank construction standards. Furthermore, the motors and instrumentation require explosion-proof ratings. Specifying ATEX or Class 1 Division 1 hazardous location motors ensures the system operates safely within highly volatile atmospheres without risking ignition.
Municipal and industrial wastewater facilities deal with distinct mixing dynamics. In massive equalization basins, flash mixing zones, and sludge holding tanks, maintaining homogeneity is critical. A properly sized side mounted mixer keeps solid particulates in constant suspension. It prevents biological matter from settling and going septic, which would otherwise disrupt subsequent chemical dosing or filtration stages.
Corrosion resistance demands strict attention here. Aggressive chemical treatments and high-chloride wastewater will rapidly degrade standard materials. Engineers routinely specify duplex stainless steels or advanced polymer coatings for the wetted parts. Additionally, water treatment applications heavily favor fixed-angle mounting strategies. A fixed offset angle optimizes the bulk flow pattern, inducing a gentle yet thorough swirl. This strategic fluid motion eliminates the need for expensive internal tank baffles, simplifying the tank's internal geometry.
Application Configuration Matrix
Application Sector | Primary Mixing Goal | Preferred Mounting Style | Crucial Material Standard |
|---|---|---|---|
Crude Oil Storage | Prevent BS&W and sludge buildup | Swivel-angle (Variable) | Carbon Steel / API 650 Compliant |
Wastewater Treatment | Maintain solid suspension | Fixed-angle (Offset) | Duplex Stainless / High Corrosion Resistance |
Chemical Processing | Rapid thermal & chemical blending | Fixed-angle | Alloy 20 / Hastelloy components |
Evaluating standard vendor specifications requires a critical eye. Many manufacturers rely on outdated metrics that misrepresent true field performance. Follow these sequential evaluation steps to ensure you select the correct equipment for your facility.
Scrutinize Impeller Efficiency (Thrust vs. Power): You must discard generic horsepower metrics immediately. Motor size does not equal mixing capability. Instead, focus entirely on the thrust generated per kilowatt. Advanced high-efficiency hydrofoil impellers generate massive axial flow with minimal shear. This specific geometry translates motor energy into pure fluid movement, saving thousands of dollars in annual energy costs.
Demand Mechanical Seal and Shut-Off Integrity: A high-quality storage tank mixer requires a foolproof tank shut-off device. Mechanical seals inevitably wear out and fail. A reliable shut-off mechanism allows maintenance crews to mechanically isolate the tank contents from the agitator shaft. Operators can safely replace the mechanical seal without draining millions of gallons of valuable fluid.
Analyze the Drive Systems (Belt vs. Gear-Driven): Understand the mechanical trade-offs between drive types. V-belt drives offer excellent vibration dampening and act as a mechanical fuse during sudden torque spikes. However, they require frequent tensioning and replacement. Conversely, gear-driven models deliver a compact footprint and reliable high-torque delivery. Gearboxes demand less frequent intervention but require strict lubrication management.
We highly recommend verifying the exact seal cartridge availability in your specific region before finalizing any purchase order. Supply chain delays on custom mechanical seals can force a tank offline for weeks.
Deploying heavy rotating equipment on thin-walled steel tanks introduces severe mechanical risks. Poor planning during the structural design phase guarantees premature equipment failure and potential environmental spills. Process engineers must address three primary risk categories.
Nozzle Stress and Flange Loading Mitigation: Massive impellers generate intense dynamic bending moments. The tank wall cannot absorb these forces alone. Engineering teams must design proper reinforcement for the tank manway or the specific mounting nozzle. Adding internal gussets or external stiffener rings prevents the tank shell from flexing and tearing under operational loads.
Vibration and Harmonics Control: Shaft deflection presents a critical failure point. If the shaft vibrates excessively, it destroys the mechanical seal and the primary bearings. Reputable vendors perform finite element analysis (FEA) during the design phase. FEA predicts natural frequencies and ensures the agitator operates well outside destructive harmonic resonance zones.
Positioning and Offset Angle Optimization: Mounting a unit pointing straight across the tank center creates a useless, localized vortex. You must follow strict baseline rules for offset mounting. Typically, engineers install the unit 7 to 10 degrees off-center. This precise angle induces optimal bulk fluid motion, sweeps the floor effectively, and prevents inefficient vortexing at the fluid surface.
A common mistake during installation involves welding the reinforcing pads incorrectly, which warps the mounting flange. Always ensure your mechanical contractors use appropriate heat management techniques when welding nozzle reinforcements.
Once you define your technical requirements, you must filter your vendor list. Marketing brochures look identical, but engineering capabilities vary wildly. You must enforce strict verification protocols during the final selection phase.
First, demand vendor-supplied Computational Fluid Dynamics (CFD) modeling verification. Never accept generic flow charts or broad historical data. The vendor must input your specific tank geometry, precise fluid viscosity, and specific gravity. The resulting CFD report should visually prove the chosen impeller will achieve total volume turnover within your required timeframe. If a vendor hesitates to provide bespoke CFD analysis, disqualify them immediately.
Next, strictly evaluate the Service Level Agreements (SLAs). Hardware is only as good as the support network behind it. Scrutinize the vendor's field service capabilities. Do they have certified technicians available in your region? Evaluate their commissioning support structure. Most importantly, demand clear warranty terms regarding process guarantees. The contract should guarantee specific mixing times and homogenization levels, not just the mechanical integrity of the steel components.
Successfully implementing a high-capacity mixing system requires disciplined engineering oversight. You must prioritize seal maintainability, ensuring your team can service the equipment without draining the tank. Always verify the claimed thrust and flow patterns through bespoke CFD modeling tailored to your specific fluid rheology. Furthermore, you must account for dynamic structural nozzle loads to prevent catastrophic tank shell fatigue.
We encourage decision-makers to audit their current tank specifications against the strict criteria outlined in this guide. Identify areas where outdated horsepower metrics might be inflating your energy costs or where improper offset angles are causing sludge accumulation.
Take action today by reviewing your worst-performing storage tank. Submit your tank dimensions, fluid viscosity, and specific gravity to a qualified engineering vendor for a preliminary CFD analysis, or download a technical spec-sheet template to standardize your next procurement cycle.
A: There is no strict maximum volume limit. For massive vessels exceeding millions of gallons, engineers simply utilize multiple units mounted around the tank perimeter. This multi-mixer configuration creates synergistic flow patterns, ensuring complete homogeneity and preventing dead zones regardless of the sheer scale of the storage tank.
A: These mixers feature a mechanical retraction and shut-off collar mechanism. Technicians manually retract the agitator shaft outward. This action engages a metal-to-metal seal between a collar on the shaft and the mixer mounting flange. This securely isolates the fluid inside, allowing safe external seal replacement.
A: Your application dictates the choice. Choose a swivel-angle configuration for crude oil storage, as varying the thrust angle actively resuspends heavy sludge across the tank floor. Choose a fixed-angle mixer for uniform, continuous homogeneous blending, such as in water treatment or standard chemical processing.
A: Side entry units are highly efficient for low-to-medium viscosity fluids. However, as viscosity increases significantly, the jet stream struggles to penetrate across the full diameter of the tank. For highly viscous fluids like heavy polymers or thick slurries, alternative technologies like top-entry ribbon blenders are required.
