Procuring complex machinery for chemical processing requires substantial capital expenditure. You cannot afford to rely on assumptions when ordering rotating equipment for hazardous environments. Ordering without rigorous performance validation risks premature mechanical failure, dangerous chemical leaks, and severe non-compliance with strict plant safety protocols. Unfortunately, manufacturer datasheets often present idealized theoretical performance rather than practical field reliability. Buyers must bridge the critical gap between advertised marketing metrics and actual mechanical dependability under specific, real-world process conditions. This article provides a standardized, evidence-based evaluation framework designed for engineering and procurement teams. We will explore how to assess essential operational parameters and strict mechanical requirements before you finalize the Purchase Order (PO). You will learn exactly how to systematically validate hydraulic data, testing tolerances, and factory inspection plans effectively.
Prioritize pumps that operate consistently within the Preferred Operating Region (POR) rather than just the Allowable Operating Region (AOR) to maximize Mean Time Between Failures (MTBF).
Scrutinize API 610 test tolerances for rated head, flow, and power to prevent undersizing or motor overload.
Validate NPSH margins strictly; the available NPSH must safely exceed the required NPSH to prevent cavitation in volatile chemical applications.
Require clear Factory Acceptance Test (FAT) protocols and API 682 seal compliance as non-negotiable procurement criteria.
Evaluating a chemical process pump requires strict alignment with your system specifications. It must meet specific flow and head requirements without triggering excessive vibration or rapid seal wear. The American Petroleum Institute sets clear benchmarks for these operational boundaries. We categorize these operational boundaries into two distinct engineering zones.
You must verify the manufacturer's performance curve closely. It should guarantee continuous operation within the Preferred Operating Region (POR). The API 610 standard defines this region as 70% to 120% of the Best Efficiency Point (BEP). Operating within this window minimizes harmful radial loads on the impeller. It keeps internal fluid flow highly stable and predictable. Stable flow prevents internal recirculation. This directly extends the life of internal components.
Manufacturers also define an Allowable Operating Region (AOR). They base these absolute limits on maximum acceptable vibration levels and internal temperature rise. You should restrict operating at the edges of the AOR to temporary or transient conditions only. Extended operation in this wider zone causes rapid mechanical wear. Shaft deflection increases significantly near the AOR limits. This deflection damages mechanical seals and bearing assemblies.
Reject vendor proposals where your plant's normal operating duty falls outside the POR. Operating continuously outside this preferred zone exponentially increases radial loads. It drastically reduces bearing life and compromises critical shaft seals. Proper upfront selection eliminates these risks entirely.
Table 1: Operational Region Comparison
Operational Parameter | Preferred Operating Region (POR) | Allowable Operating Region (AOR) |
|---|---|---|
Flow Range (% of BEP) | 70% to 120% | Defined by vendor (e.g., 30% to 130%) |
Vibration Levels | Minimal; well within API limits | Higher; approaches maximum API limits |
Seal and Bearing Life | Maximum expected lifespan | Significantly reduced lifespan |
Typical Usage Scenario | Continuous, normal daily operation | Transient, startup, or emergency conditions |
A common mistake is sizing a pump for future capacity but operating it currently at minimum flow. This forces the unit to run constantly near the left edge of the AOR. Always prioritize current continuous duty requirements. You can utilize variable frequency drives to manage future capacity increases safely.
Not all pumps perform exactly to the submitted theoretical curve. Evaluating API 610 centrifugal pump performance requires understanding acceptable deviations. The standard establishes strict boundaries during factory testing. These precise tolerances protect buyers from receiving underperforming or overpowered equipment.
You must validate the rated duty carefully. Check how the manufacturer handles standard tolerances during testing. These include specific plus or minus percentages on flow, head, and overall efficiency. An oversized impeller might deliver the requested flow but consume excessive electrical power. The standard allows small positive tolerances on head. This means your pump might produce slightly more pressure than requested.
Next, analyze the closed valve head. Engineers often refer to this as the shut-off head. You must ensure the maximum head at zero flow does not exceed your system design pressure. It must also remain safely within piping safety limits. A pump exceeding these thresholds can catastrophically burst downstream valves or piping components.
Power consumption demands equal engineering scrutiny. Confirm test tolerances do not push the power requirement beyond the motor's rated capacity. You must compare the maximum potential power draw against the nameplate power of your selected motor. Always ensure the motor covers the end-of-curve power requirements. This prevents nuisance tripping during unexpected high-flow events.
Demand sample performance test reports from similar past projects. Transparent vendors readily provide historical test curve data. They use this data to prove their manufacturing consistency and quality control. Review these documents to verify they reliably hit required performance bands without extensive factory modifications. Reject vendors who hesitate to share this historical evidence.
Handling volatile fluids near their vapor pressure presents severe engineering challenges. Cavitation remains a primary cause of catastrophic mechanical failure in chemical processing. When localized pressure drops below vapor pressure, vapor bubbles form. These bubbles travel to higher pressure zones and violently collapse. This violent collapse destroys impellers rapidly and induces extreme vibration.
The Net Positive Suction Head available (NPSHa) in your system is critical. It must always exceed the pump's Net Positive Suction Head required (NPSHr). You calculate NPSHa based on your tank levels, atmospheric pressure, and specific pipe friction. The manufacturer determines NPSHr strictly through physical factory testing.
Ensure the manufacturer accounts for the API-recommended margin. This safety margin typically stands at 1 meter or higher. It depends heavily on the specific fluid properties and the kinetic energy level. Highly volatile chemicals, such as light hydrocarbons, demand even larger safety buffers. A zero-margin design virtually guarantees premature failure.
Evaluate the Suction Specific Speed (Nss) value carefully. Excessively high Nss numbers often indicate a narrower stable operating window. They signal a higher susceptibility to internal fluid recirculation at partial flows. This internal recirculation creates damaging low-frequency vibrations.
Keep Nss values below 11,000 (US units) for most standard chemical duties.
Require custom inducer designs if your system provides extremely low NPSHa.
Avoid relying entirely on standard water testing to predict hydrocarbon cavitation behavior.
Double-check all suction piping friction loss calculations before approving the data sheet.
Hydraulic success means nothing if metallurgy fails under aggressive operation. You must ensure the chosen materials withstand aggressive chemical exposure over time. A robust API 610 pump relies on superior mechanical design and correct material selection.
Cross-reference proposed wetted parts against API 610 Material Classes found in Annex H. Common classes include S-6 (carbon steel), C-6 (12% chrome), A-8 (austenitic stainless), and D-1 (duplex stainless). Match these carefully against your specific chemical corrosivity and operating temperature requirements. A mismatch here guarantees rapid corrosion, thinning casings, and hazardous fluid leaks.

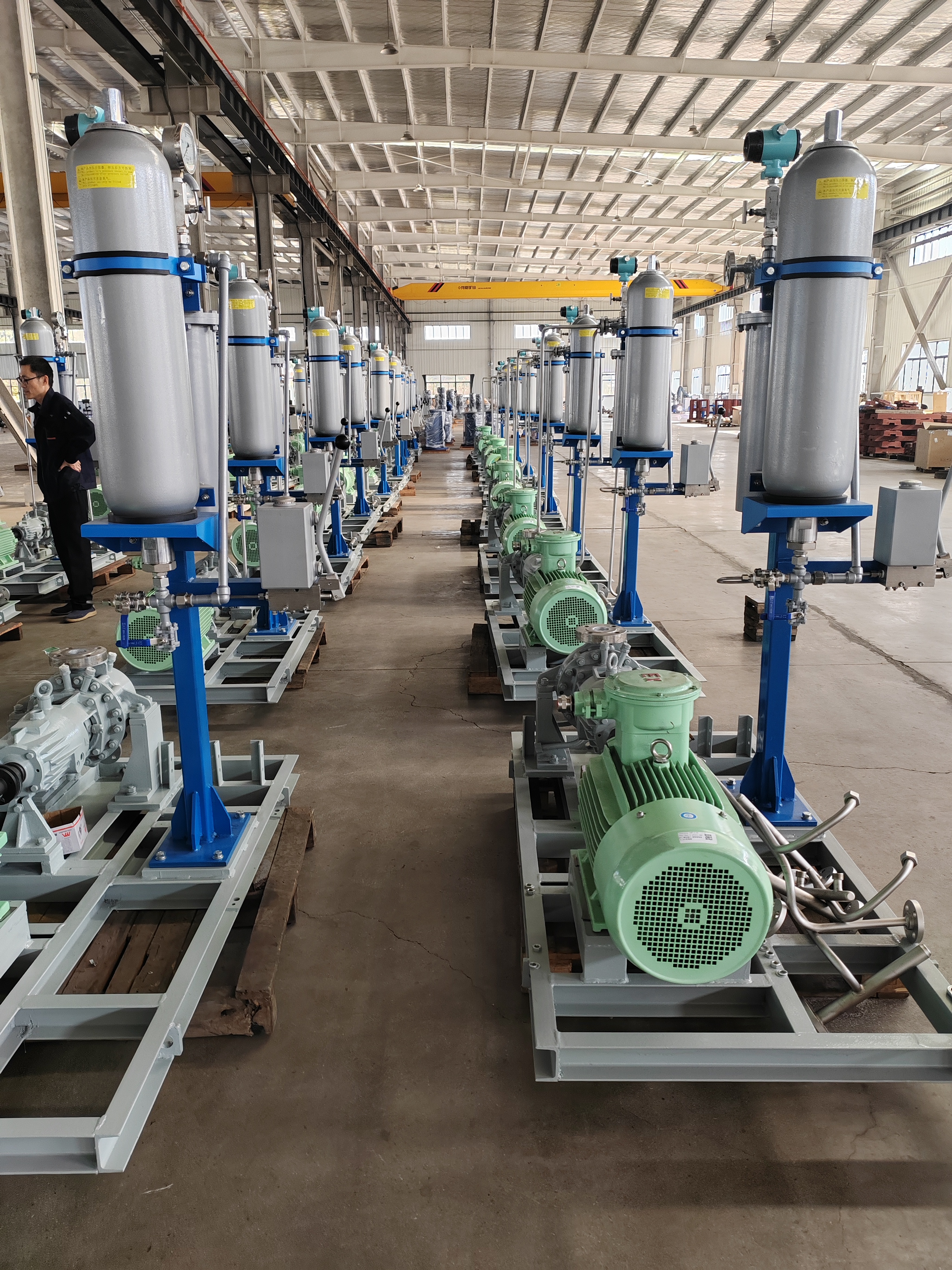

Verify absolute compliance with API 682 standards for the seal chamber dimensions. You must ensure adequate physical space exists for advanced mechanical seal piping plans. Hazardous chemicals often require complex double seal arrangements. These include systems like Plan 53B or Plan 54. These barrier fluid systems need specific chamber clearances to function properly and dissipate heat.
Review the proposed rotor dynamics and vibration limits closely. Analyze the bearing span and the shaft stiffness ratio. Engineers calculate this as the L³/D⁴ ratio, where L is the bearing span and D is the shaft diameter. A lower ratio indicates a stiffer shaft. A stiff shaft minimizes deflection at the mechanical seal faces during operation. Minimal deflection prevents fugitive emissions and dramatically extends mechanical seal life.
You should also verify the baseplate design. A flimsy baseplate negates excellent rotor dynamics. Ensure the manufacturer proposes a heavily ribbed, rigidly constructed baseplate. It must resist twisting during pipe installation and operation. Poor baseplate rigidity leads directly to chronic misalignment issues.
The final evaluation layer involves factory verification and inspection. You must verify how the manufacturer will prove performance before authorizing shipment. Robust testing prevents costly site modifications and delayed project startups. It forces the vendor to correct defects in their facility, not yours.
Ensure standard hydrostatic testing is clearly documented in the commercial proposal. The manufacturer must test pressure casings at 1.5 times the Maximum Allowable Working Pressure (MAWP). They must hold this pressure for a minimum of 30 minutes. This critical step confirms casing integrity under extreme stress conditions. It ensures the casing will not fracture under sudden pressure spikes.
For critical applications, specify a witnessed or remotely witnessed performance test. The manufacturer should test the unit across a minimum of five specific points on the performance curve. These points typically include shut-off, minimum continuous stable flow, midway point, rated flow, and maximum flow. This confirms behavior across the entire operational range.
Decide if your application requires an NPSHr suppression test. We highly recommend this for systems with exceptionally low NPSHa. It physically proves the equipment will not cavitate under your specific suction conditions. It eliminates theoretical guesswork.
Use the following shortlisting logic when evaluating vendor proposals:
Request a detailed Inspection and Test Plan (ITP) during the initial bidding phase.
Review the proposed line-item costs for standard API compliance testing.
Eliminate vendors who charge excessive premiums for basic API validation tests.
Reject proposals lacking transparent documentation for their internal QA/QC processes.
Confirm the vendor has localized service centers for future commissioning support.
A comprehensive FAT strategy provides ultimate peace of mind. It ensures the equipment matches the precise specifications agreed upon in the data sheet. Do not compromise on testing requirements to save minor upfront costs. Skipping tests often leads to disastrous operational failures.
Evaluating industrial pumping equipment requires looking far past basic flow and head parameters. You must scrutinize preferred operating regions, strict test tolerances, mechanical stiffness, and seal compatibility. Testing transparency serves as the ultimate proof of manufacturing quality. By demanding rigorous evidence upfront, you protect your plant from catastrophic downtime and environmental hazards.
Before issuing a PO, require vendors to submit a fully populated API 610 data sheet. Demand proposed performance curves that clearly plot NPSHr, maximum power draw, and efficiency bands. Mandate a detailed Inspection and Test Plan (ITP) for your engineering team to review thoroughly. Compare all vendor submissions strictly against your site's baseline operational and safety requirements to ensure flawless integration.
A: The location of your rated operating point relative to the pump's Best Efficiency Point (BEP). Operating outside the Preferred Operating Region leads to premature mechanical degradation.
A: API 610 allows certain positive tolerances on power consumption and head. You must ensure the selected motor is sized to handle the maximum allowable power draw across the entire usable curve, not just at the rated point.
A: Yes, but it is generally cost-prohibitive. API 610 centrifugal pumps are heavily engineered for extreme temperatures, high pressures, and hazardous chemicals. For standard water, ISO or ANSI pumps are usually more economically viable.
A: The manufacturer must modify the hydraulics (such as trimming the impeller or polishing the volute) and re-test at their expense until the pump falls within the acceptable API 610 tolerances. Your PO should clearly stipulate this condition.
