Handling industrial chemical transfer involves moving toxic, highly corrosive, or volatile fluids. Equipment failure in these demanding environments triggers catastrophic downtime. It also creates severe environmental hazards and critical safety incidents. Standard ANSI or ISO pumps handle light-duty applications perfectly well. However, severe chemical applications demand heavy-duty structural integrity. You cannot risk casing cracks under pressure. You also cannot risk sudden mechanical seal blowouts. Making the correct choice protects plant personnel. It also ensures steady operational continuity. This article provides plant engineers and procurement teams an evidence-based framework for API 610 centrifugal pump selection. We guide you through matching equipment directly to specific hydraulic realities. You will learn how to balance metallurgical compatibility and strict safety compliance. Our goal is to help you specify the exact pump required. You will achieve maximum reliability without unnecessarily inflating your capital expenditures.
API 610 centrifugal pump selection requires matching the specific pump designation (OH, BB, VS) to system pressure, footprint, and fluid dynamics.
Metallurgy must be evaluated against the exact chemical composition, temperature, and abrasiveness of the process fluid, utilizing standard API material classes (e.g., A-8, D-1).
A compliant chemical process pump must integrate seamlessly with an API 682 mechanical seal system to mitigate fugitive emissions in toxic applications.
Evaluating Total Cost of Ownership (TCO) means looking beyond initial CAPEX to factor in MTBF (Mean Time Between Failures), hydraulic efficiency at the Best Efficiency Point (BEP), and maintenance accessibility.
Standard chemical process pumps typically represent a lower initial capital investment. Models built to ANSI B73.1 or ISO 2858 standards work admirably for basic water or mild chemical transfer. However, they frequently suffer premature casing or bearing failures in high-pressure environments. Extreme temperatures also warp their standard foot-mounted casings. Plant engineers must recognize specific operational thresholds. These thresholds dictate the immediate necessity for an API 610 pump.
Consider upgrading your equipment when you encounter the following operational conditions:
Operating temperatures exceed 300°F (150°C). At this point, thermal expansion becomes a critical structural threat.
Suction pressures consistently rise above 75 PSIG. High suction pressure demands heavy-wall casings to prevent deformation.
Process fluids exhibit high specific gravity or extreme flammability.
The application involves extreme toxicity requiring absolute zero-leakage assurances for personnel safety.
Meeting these criteria ensures a highly successful installation. An optimized selection maximizes your equipment's Mean Time Between Failures (MTBF). You easily maintain regulatory compliance regarding fugitive emissions. Organizations like the EPA and OSHA strictly monitor these emissions. Finally, the heavier construction maintains steady hydraulic performance under varying system heads.
Hydraulic sizing requires absolute precision during the engineering phase. You must calculate the Net Positive Suction Head available (NPSHa). Compare this figure against the pump's required head (NPSHr). We strongly recommend maintaining a safe operating margin of at least 3 feet. This margin prevents destructive cavitation during volatile chemical transfer. Cavitation physically pits the impeller metal. It also induces severe vibration across the rotating assembly.
Next, evaluate the Best Efficiency Point (BEP) carefully. Review the vendor-supplied performance curves. Your chosen pump must operate consistently within its preferred operating region. This region typically spans from 70% to 120% of the BEP. Operating here minimizes destructive radial thrust. It extends bearing life and reduces overall equipment vibration.
Metallurgy dictates both safety and equipment longevity. You must match API material classes to fluid aggressiveness. Avoid over-specifying metallurgy blindly. Requesting exotic alloys for a mild acid unnecessarily inflates capital costs. It also extends factory lead times. Conversely, under-specifying materials risks rapid casing degradation and catastrophic chemical leaks.
Table: Common API Material Classes for Chemical Transfer
API Material Class | Primary Material Composition | Typical Chemical Application |
|---|---|---|
S-1 | Carbon Steel | Non-corrosive hydrocarbons and basic industrial solvents. |
A-8 | 316 Stainless Steel | Standard corrosive chemicals and organic acids. |
D-1 / D-2 | Duplex / Super Duplex | High-chloride environments and highly aggressive hot acids. |
Structural robustness ensures long-term operational safety. Evaluate casing thickness and allowable nozzle load limits. API standards mandate rigorous minimums for these dimensions. For example, the design must guarantee a bearing L10h life between 40,000 and 50,000 hours. This exact requirement depends on the specific pump architecture. Heavy-duty bearing housings prevent shaft deflection during sudden process upsets.
Overhung (OH) pumps handle general continuous chemical transfer perfectly. They suit moderate system pressures exceedingly well. The OH2 design features a centerline-supported casing. It stands as the industry workhorse for high-temperature chemical transfer. Standard foot-mounted pumps expand upward during heating. This movement causes severe shaft misalignment. Centerline mounting prevents thermal expansion from destroying the shaft coupling.
Between Bearing (BB) pumps serve highly demanding process systems. They excel at high-flow or high-pressure chemical transfer. Engineers often specify them for pipeline booster stations or high-pressure reactor feeds. The BB2 design utilizes a radially split casing. Radially split designs offer superior safety for volatile fluids. Axially split casings tend to leak along the horizontal split line under extreme internal pressure.
Vertically Suspended (VS) pumps handle sump transfer tasks efficiently. They work excellently for underground tank unloading operations. You should specify them for applications experiencing extremely limited NPSHa. The impellers sit submerged directly in the fluid. The VS4 line-shaft pump requires careful engineering evaluation. You must review the column bearing lubrication method closely. Abrasive or non-lubricating chemicals quickly destroy standard column bearings. You may need an external clean flush system.
An industrial pump is only as safe as its mechanical seal. Standard braided packing fails quickly in hazardous chemical transfer. Basic single seals also prove inadequate for dangerous fluids. A compliant chemical process pump must integrate seamlessly with an engineered sealing system. We follow API 682 standards to mitigate fugitive emissions completely.
Selecting the right seal arrangement requires analyzing specific fluid hazards:
Arrangement 1: Single seals work perfectly for non-hazardous liquids. They handle low-volatility fluids safely and economically.
Arrangement 2: Dual unpressurized seals provide vital secondary containment. We specify them regularly for moderately toxic fluids.
Arrangement 3: Dual pressurized seals guarantee absolute zero leakage to the atmosphere. You must use them for highly dangerous, lethal, or volatile organic compounds (VOCs).

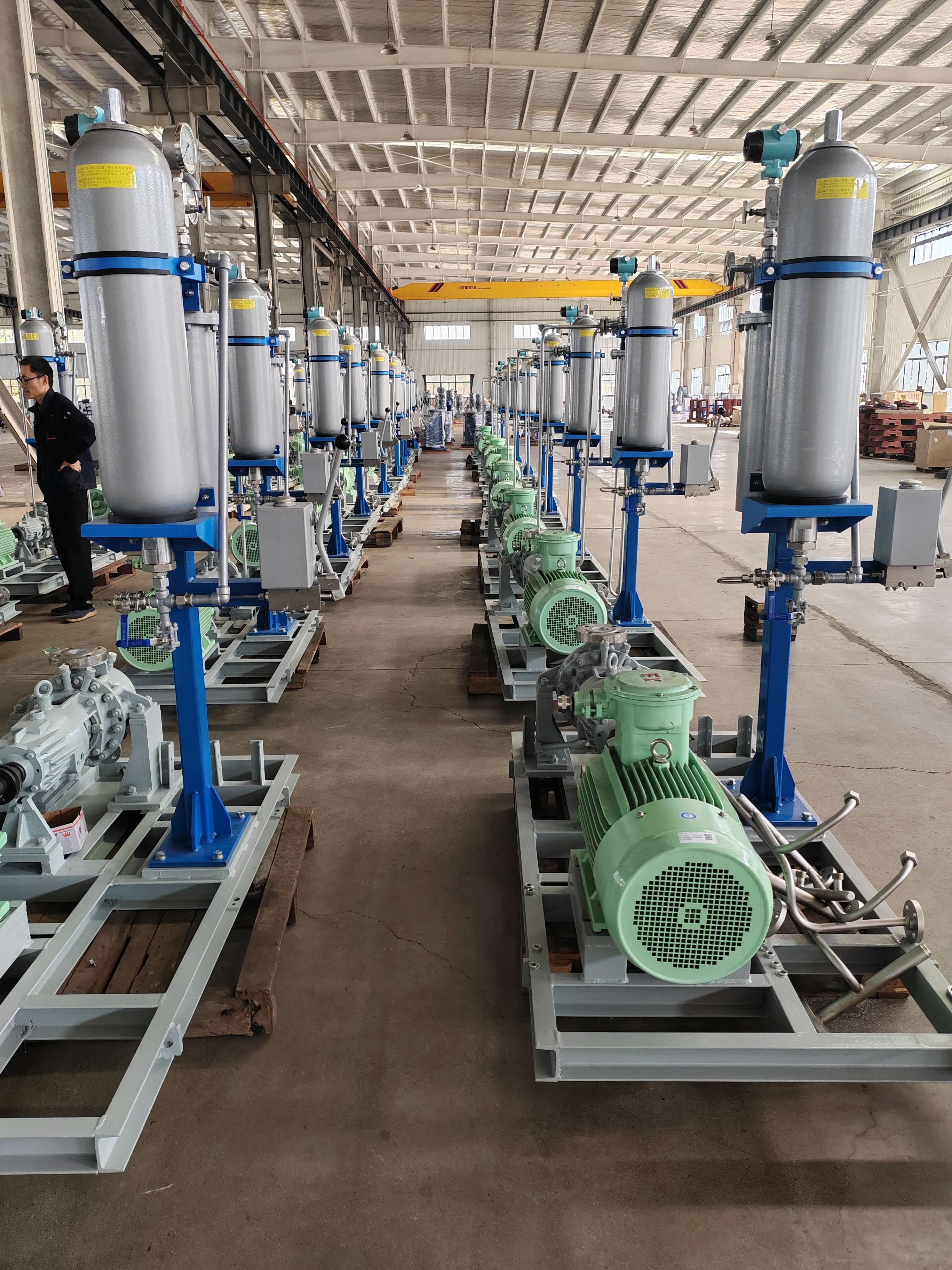

Seal flush plans ensure the internal seal faces remain lubricated. They also cool the internal seal cavity environment. You must select appropriate API flush plans for your specific process. Plan 11 uses a simple internal bypass from the pump discharge. Plan 53A utilizes a pressurized barrier fluid reservoir. Plan 54 employs an external pressurized lubrication system. Factor the utility costs of these barrier fluids into your initial site evaluation.
Evaluating vendor credibility stands as your most critical procurement task. Look for empirical testing data before signing a purchase order. Does the vendor conduct full API 610 performance testing in-house? Do they perform certified NPSH testing before shipping the equipment? Reputable manufacturers prove their hydraulic claims through rigorous factory acceptance tests.
You must also scrutinize the casting supply chain. Substandard metal castings contain hidden porosity. This porosity causes sudden casing failures under high system pressure. Ensure all castings originate from certified industrial foundries. The vendor must provide verifiable Material Test Reports (MTRs) for every major pressure-containing component.
Shortlisting manufacturers requires structured and objective logic. We recommend developing a weighted decision matrix. This approach removes emotional bias from the entire procurement process. Consider prioritizing hydraulic fit at 40% of the total score. Assign material compatibility and safety another 40%. Dedicate the final 20% to vendor support and factory lead times. A strong vendor provides extensive localized support during plant commissioning.
Selecting the right API 610 chemical centrifugal pump requires engineering balance. You must weigh basic hydraulic realities against strict safety standards. Standardizing on appropriate material classes protects your operational footprint. Proper mechanical seal arrangements prevent dangerous atmospheric emissions and protect plant personnel.
We strongly advise against relying solely on generalized vendor sizing software. These automated programs often miss critical site-specific nuances. Cross-reference all proposed pump curves internally. Review material classes and seal flush plans alongside your process engineers. Always analyze historical failure data from similar plant applications.
Take action by compiling a comprehensive API 610 datasheet today. Include exact fluid properties, precise duty cycles, and specific site conditions. Complete this document thoroughly before initiating RFQs. Providing detailed data ensures shortlisted manufacturers quote the exact equipment you actually need.
A: Lead times typically range from 24 to 52 weeks. The exact timeframe depends heavily on the chosen material class. Standard cast iron or carbon steel models arrive faster. Exotic alloys like super duplex stainless steel require complex casting and extended cooling times. Stringent in-house testing requirements also add several weeks to the final delivery schedule.
A: Initial capital expenditure is generally two to four times higher. This premium pays for heavier casing walls and centerline mounting blocks. It also covers rigorous quality control and mandatory performance testing. However, this initial premium is quickly offset by significantly higher reliability and longer mean time between failures in severe chemical applications.
A: Yes, you can successfully pair these pumps with VFDs. However, engineers must carefully evaluate the system for minimum continuous safe flow constraints. Operating at extremely low speeds reduces vital bearing lubrication. It also risks dangerous fluid temperature rise inside the casing. You must also analyze the entire rotating assembly for potential torsional vibration issues.
A: It is not a statutory law enforced by governments. Rather, it represents a globally recognized industry best practice. Many chemical processing plants make it an internal corporate mandate. They require compliance to ensure absolute reliability in hazardous environments. Adhering to the standard also satisfies insurance providers assessing risk for high-hazard industrial facilities.
