Advanced Stirring Technology Phosphoric Acid Wet-Process Mixer

The Heavy Duty Phosphoric Acid Wet Process Mixer is specially designed for wet process phosphoric acid (WPA) production systems. Engineered for highly corrosive and abrasive slurry environments, the mixer provides efficient circulation, anti-sedimentation performance, and stable mass transfer in fertilizer and chemical processing plants.
Manufactured with corrosion-resistant materials Duplex SS 1.4507, the agitator ensures long service life and reliable continuous operation under harsh industrial conditions. Its optimized impeller structure improves reaction efficiency, reduces energy consumption, and supports customized configurations for various phosphoric acid production processes.


Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Agitators

  • Tengyu Brand

Product Overview


The Wet Process Phosphoric Acid Slurry Mixer is a heavy-duty industrial agitator designed for wet-process phosphoric acid (WPA) production and other demanding solid-liquid mixing applications.


During wet-process phosphoric acid production, phosphate rock powder, phosphoric acid, sulfuric acid, and phosphogypsum crystals form a complex slurry system. Maintaining effective solid suspension and uniform circulation is essential for reducing sedimentation, promoting material contact, and supporting stable process conditions.


TENGYU's phosphoric acid wet-process mixer features a wide-surface, angled impeller structure designed to generate combined axial and radial flow. This mixing configuration promotes slurry circulation, helps suspend solid particles, and reduces stagnant areas within the tank.


The equipment uses corrosion- and abrasion-resistant material options, including Duplex 2507, 1.4507, and 904L, with 1.4507 specified for the impeller blades. Different sealing arrangements, motor power configurations, and impeller designs are available according to actual process requirements.


Key Features of Wet Process Phosphoric Acid Mixer

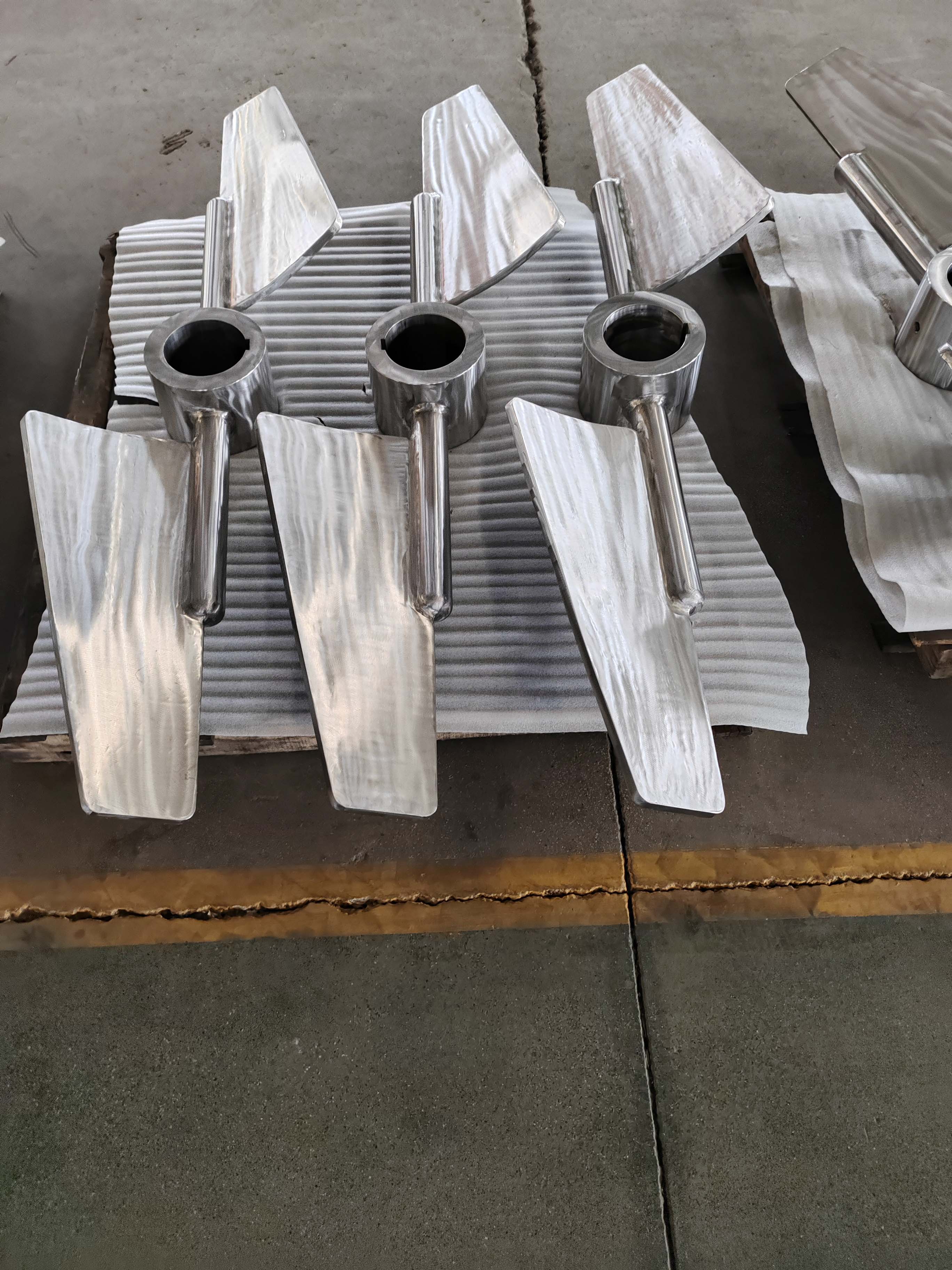

Wide-Blade Angled Impeller for Solid-Liquid Suspension

The mixer adopts a wide-surface, angled impeller design to generate combined axial and radial flow within the slurry tank.

This structure promotes the movement of high-solids-content slurry from the lower tank area toward the surrounding and upper regions, helping reduce sedimentation and material accumulation.

Key functions include:

  • Promoting solid-liquid suspension in high-solids-content slurry

  • Improving slurry circulation throughout the tank

  • Reducing stagnant areas and sediment accumulation

  • Supporting uniform distribution of suspended particles

  • Facilitating continuous mixing in WPA production systems

The impeller configuration is particularly relevant to wet-process phosphoric acid applications involving phosphate rock powder and phosphogypsum crystals.


Low-Shear Mixing to Protect Gypsum Crystal Structure

In wet-process phosphoric acid production, the physical condition of phosphogypsum crystals can influence subsequent solid-liquid separation and filtration.

Excessive shear may cause crystal breakage and produce finer particles, potentially increasing the difficulty of downstream filtration.

The mixer uses a wide-blade, large-circulation impeller configuration designed to provide slurry movement while limiting excessive shear.

This approach helps maintain the desired balance between solid suspension and crystal protection, supporting the filtration requirements of the WPA production process.


Corrosion- and Abrasion-Resistant Material Selection

Wet-process phosphoric acid slurry can contain acidic components, fluoride-bearing compounds, and suspended mineral particles, creating demanding corrosion and wear conditions for mixing equipment.

TENGYU offers several material options for different process requirements:

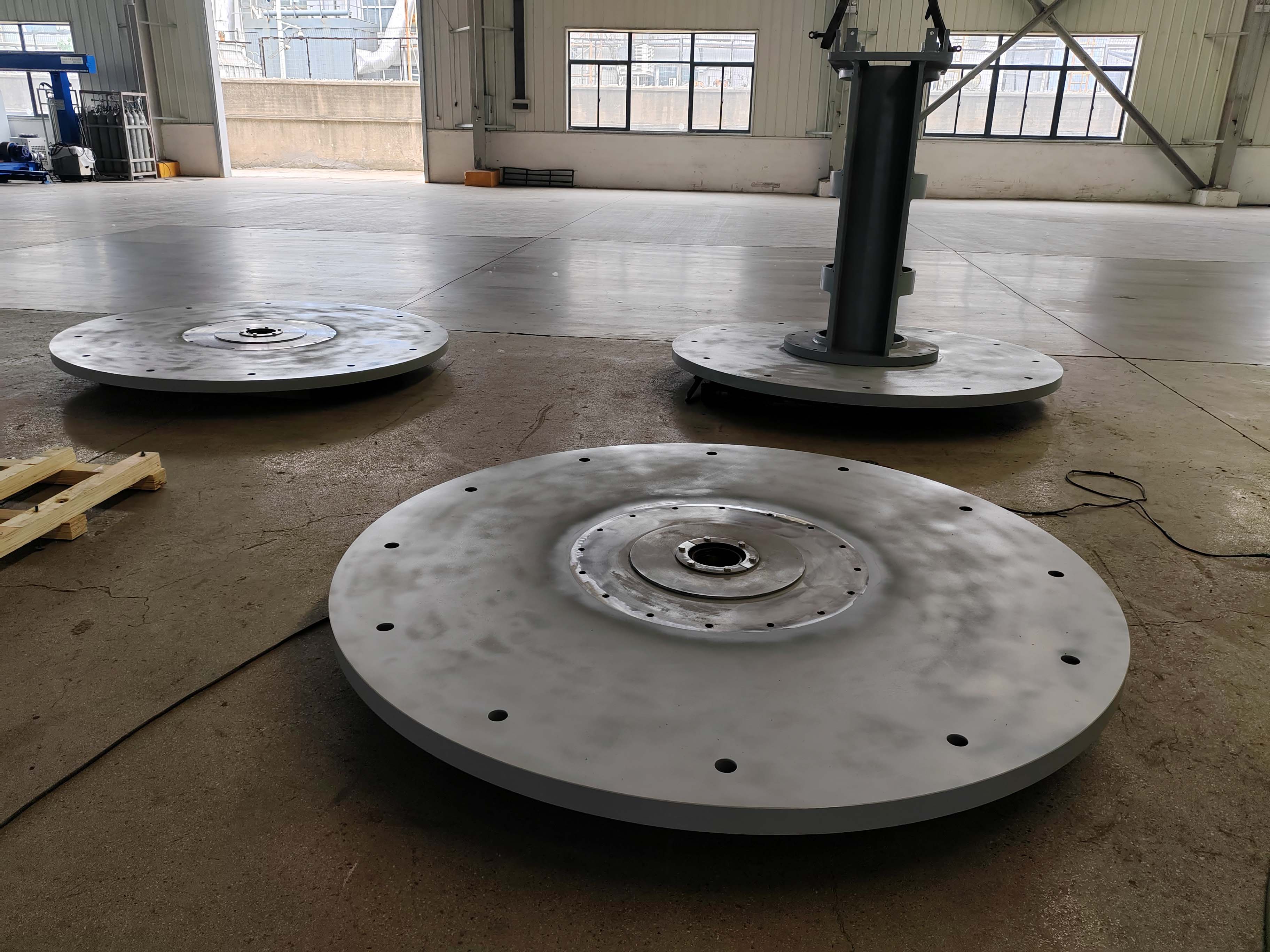

  • Duplex 2507: Available for corrosion-resistant agitator configurations.

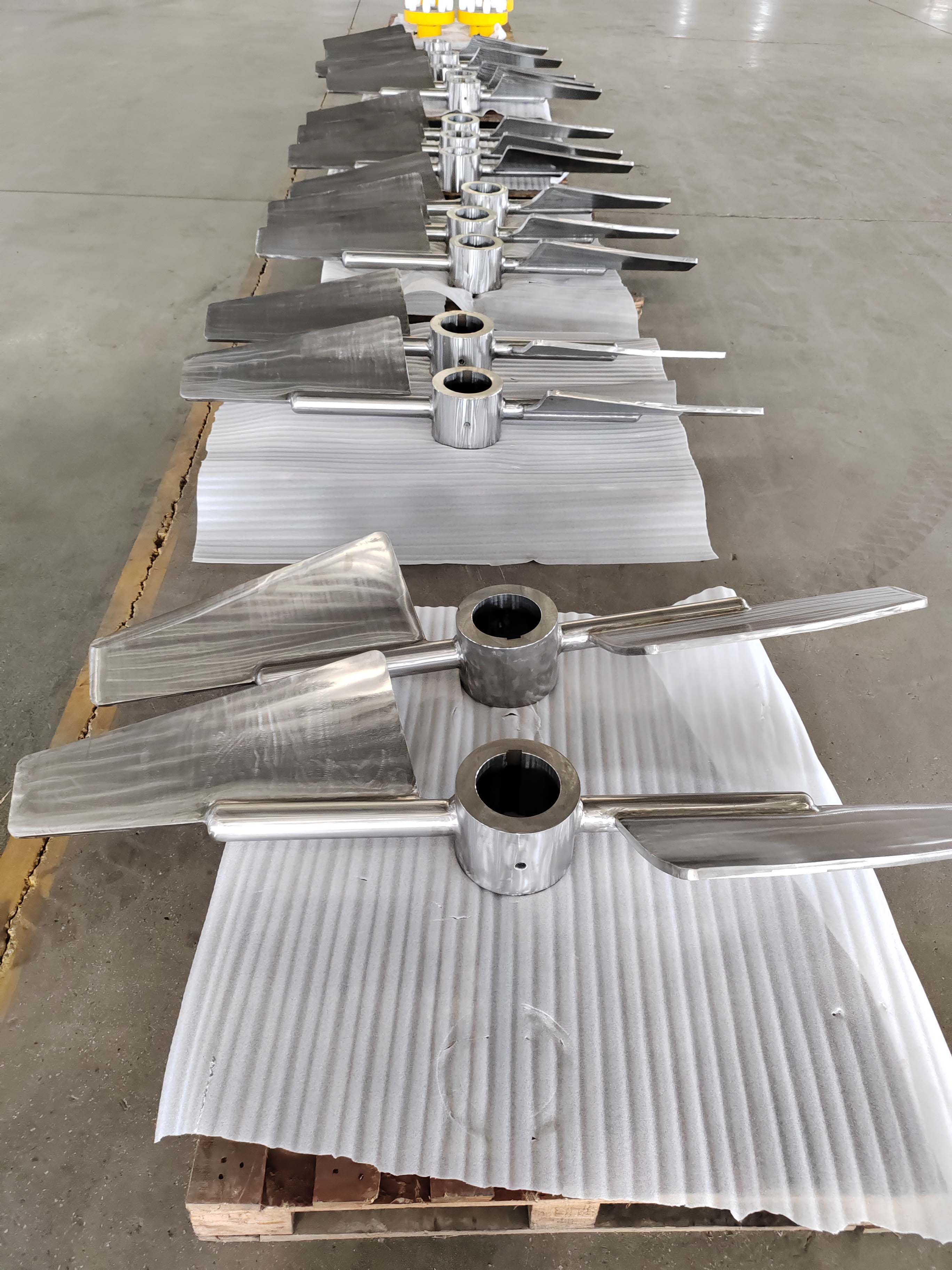

  • 1.4507 Super Duplex Stainless Steel: Specified for the impeller blades.

  • 904L Stainless Steel: Available as an alternative material option.

Material selection should be evaluated according to the actual acid composition, fluoride concentration, temperature, solid content, and abrasion conditions.

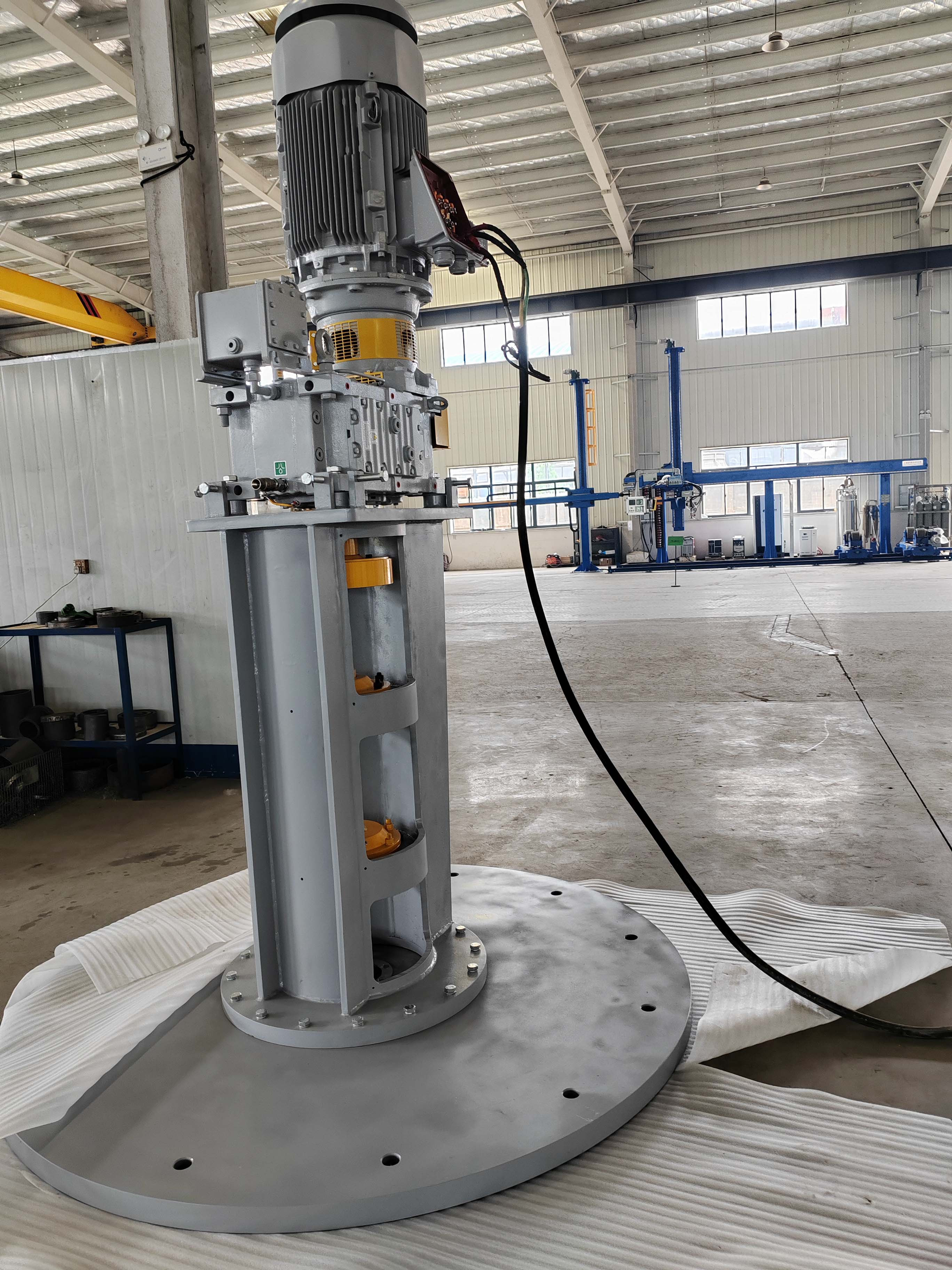

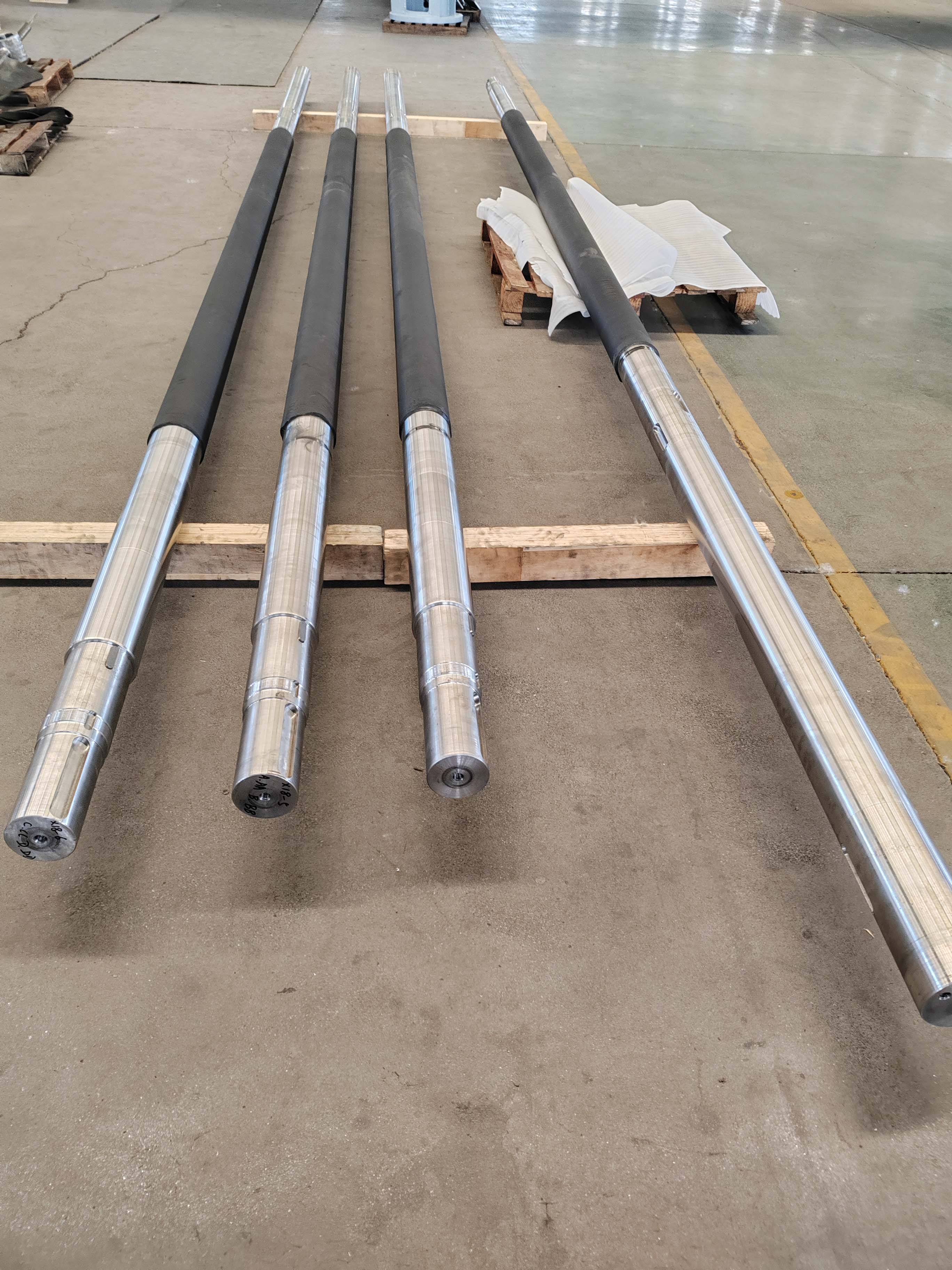

Heavy-Duty Drive and Structural Configuration


Industrial slurry mixing requires an appropriate combination of motor power, gear reducer, shaft dimensions, and impeller structure.

TENGYU provides power configurations ranging from 5.5 kW to 160 kW, allowing the equipment to be considered for different tank sizes and mixing requirements.

The drive and mechanical configuration can be selected according to the required slurry circulation, solid suspension conditions, and operating loads.


Multiple Shaft Sealing Options

Different chemical processes and operating conditions require different shaft sealing arrangements.

The available sealing configurations include:

  • Water sealing

  • Mechanical seals

  • Gland packing

The appropriate sealing type can be selected according to the process medium, operating conditions, and maintenance requirements.


Customizable Agitator Configurations

Different WPA production systems may have different tank dimensions, slurry properties, and mixing requirements.

TENGYU supports OEM/ODM customization, including:

  • Impeller type and configuration

  • Shaft length and dimensions

  • Wetted-part material selection

  • Shaft sealing systems

  • Motor power configuration

  • Installation arrangements

These options allow the agitator to be configured according to specific chemical processing and phosphoric acid production requirements.


Technical Specifications


The following specifications are based on the existing product configuration and available selection options.

ParameterSpecification
Product TypeWet Process Phosphoric Acid Mixer
Mixing TypeMixing, Suspending
Material OptionsDuplex 2507, 1.4507, 904L
Impeller Blade MaterialDuplex SS 1.4507
Solid Content28%–33% (w/w)
Operating Temperature-10°C to +40°C
Operating PressureAtmospheric
Impeller TypeHigh-Efficiency, Wide-Surface
Motor TypeStandard Motor for Safe Area
Power Range5.5 kW–160 kW
Shaft Sealing OptionsWater Sealing, Mechanical Seals, Gland Packing
InstallationVertical Installation
CustomizationOEM/ODM Available


Note: The specifications above represent the parameters listed on the current product page. Final material selection, motor configuration, sealing arrangement, and operating conditions should be confirmed according to the actual project requirements.


Applications of Phosphoric Acid Wet-Process Mixer


Wet Process Phosphoric Acid Production

The primary application of this mixer is wet-process phosphoric acid production, where solid-liquid suspension and slurry circulation are essential to the process.

The wide-blade impeller promotes the movement of phosphate rock powder and phosphogypsum-containing slurry, helping reduce sedimentation and improve mixing uniformity in reaction and extraction systems.

Its mixing configuration is designed to support material contact, slurry circulation, and heat transfer during WPA production.


Fertilizer Manufacturing

Wet-process phosphoric acid is an important intermediate in phosphate fertilizer manufacturing.

The mixer can be used in relevant slurry mixing and suspension processes where consistent material distribution and resistance to corrosive media are required.

Its wide-surface impeller structure is suitable for evaluating mixing requirements involving suspended mineral particles and acidic process media.


Chemical Processing Industry

Chemical production facilities may handle corrosive liquids, mineral suspensions, and high-solids-content mixtures that require continuous agitation.

With multiple material and sealing options, the mixer can be configured for suitable chemical slurry applications according to the actual medium characteristics and operating conditions.


Metallurgical and Mineral Processing

Solid-liquid mixing is also an important operation in hydrometallurgical and mineral processing systems.

The agitator can be considered for applications involving mineral slurry circulation, particle suspension, and mixing under demanding wear conditions.

Final suitability depends on slurry composition, particle characteristics, tank geometry, and material compatibility.


How to Select a Wet Process Phosphoric Acid Agitator

Selecting an appropriate agitator for WPA production requires more than simply choosing a motor power or impeller diameter. Several process and mechanical factors should be considered together.


1. Slurry Solid Content and Physical Properties

Solid content, slurry density, viscosity, and particle characteristics directly influence the required mixing performance.

The current product configuration specifies a solid content of 28%–33% (w/w). Buyers should provide the actual slurry properties when requesting an agitator solution.


2. Corrosion and Abrasion Conditions

Phosphoric acid slurry may contain different acidic components and suspended mineral particles.

The material selection should consider acid concentration, fluoride content, temperature, and particle abrasion characteristics.

TENGYU offers Duplex 2507, 1.4507, and 904L material options for different process requirements.


3. Impeller Structure and Mixing Requirements

The impeller design affects slurry circulation, particle suspension, and shear conditions.

For applications involving phosphogypsum crystals, buyers should consider the balance between sufficient solid suspension and limiting excessive crystal breakage.

The wide-surface angled impeller is designed to address these mixing requirements.


4. Motor Power and Sealing Configuration

Motor power should be selected according to the tank dimensions, slurry characteristics, required circulation, and mechanical loading.

The sealing arrangement should also match the process medium and operating conditions.

TENGYU provides power options from 5.5 kW to 160 kW and three sealing configurations: water sealing, mechanical seals, and gland packing.


FAQ


1. What is a wet process phosphoric acid mixer used for?

A wet process phosphoric acid mixer is used to agitate and circulate slurry during phosphoric acid production.

Its primary functions include solid-liquid suspension, slurry homogenization, reduction of sedimentation, and promotion of material contact within the process tank.


2. Why is impeller design important in WPA slurry mixing?

Impeller geometry affects the direction of fluid movement, circulation patterns, and shear conditions.

A wide-blade angled impeller generates combined axial and radial flow, helping move high-solids-content slurry and reduce stagnant areas.

It also provides a mixing approach intended to limit excessive shear on phosphogypsum crystals.


3. What is the solid content range of this phosphoric acid mixer?

The current product specification lists a solid content range of 28%–33% (w/w).

The actual mixing configuration should be evaluated according to slurry density, viscosity, particle characteristics, and process requirements.


4. What materials are available for the phosphoric acid agitator?

The available material options include Duplex 2507, 1.4507, and 904L.

The impeller blades are specified as Duplex SS 1.4507.

The final selection should consider the corrosive and abrasive properties of the process medium.


5. What sealing types are available?

Three sealing configurations are listed:

  • Water sealing

  • Mechanical seals

  • Gland packing

The suitable arrangement depends on the process medium and operating requirements.


6. What motor power options does the mixer support?

The product offers a motor power range of 5.5 kW to 160 kW.

The appropriate motor configuration should be determined according to tank dimensions, slurry properties, and required mixing performance.


7. Can TENGYU customize the agitator for different WPA plants?

Yes. OEM/ODM services are available.

Customization can cover impeller types, shaft configurations, sealing systems, material selections, and motor power according to specific project requirements.


8. What information should buyers provide when requesting a phosphoric acid agitator?

To evaluate an appropriate agitator configuration, buyers are encouraged to provide:

  • Tank dimensions and geometry

  • Slurry composition and solid content

  • Medium density and viscosity

  • Operating temperature and pressure

  • Acid concentration and fluoride content

  • Required material and corrosion resistance

  • Available installation space

  • Preferred motor and sealing requirements

These details help determine a suitable impeller structure, shaft configuration, material selection, and drive arrangement.


Contact TENGYU for Customized Phosphoric Acid Mixing Solutions


Looking for a reliable agitator for wet-process phosphoric acid production?

TENGYU provides industrial mixing equipment with different impeller structures, corrosion-resistant material options, sealing arrangements, and drive configurations.

Whether your project involves WPA slurry circulation, solid-liquid suspension, or phosphogypsum mixing, our team can discuss the appropriate equipment configuration according to your process conditions.

Contact us to discuss your project requirements and request technical information.
