Specifying the wrong fluid transfer equipment creates a serious engineering dilemma. Overspecifying traps vital capital in unnecessary heavy-duty hardware. Underspecifying exposes the facility to catastrophic seal failures, environmental leaks, and severe non-compliance. These outcomes ruin project economics and endanger personnel.
At the heart of this decision are two dominant frameworks governing industrial fluid movement. These frameworks dictate facility safety margins. They determine routine maintenance intervals. They also establish the upfront capital required for plant construction. Selecting between them requires a deep understanding of structural limits and process demands.
This article provides an objective, spec-driven industrial pump comparison. We will explore structural mechanics, thermal dynamics, and compliance thresholds. This guide will help procurement and engineering teams align the right equipment with specific operational realities. You will learn exactly when standard modularity suffices and when heavy-duty safety mandates apply.

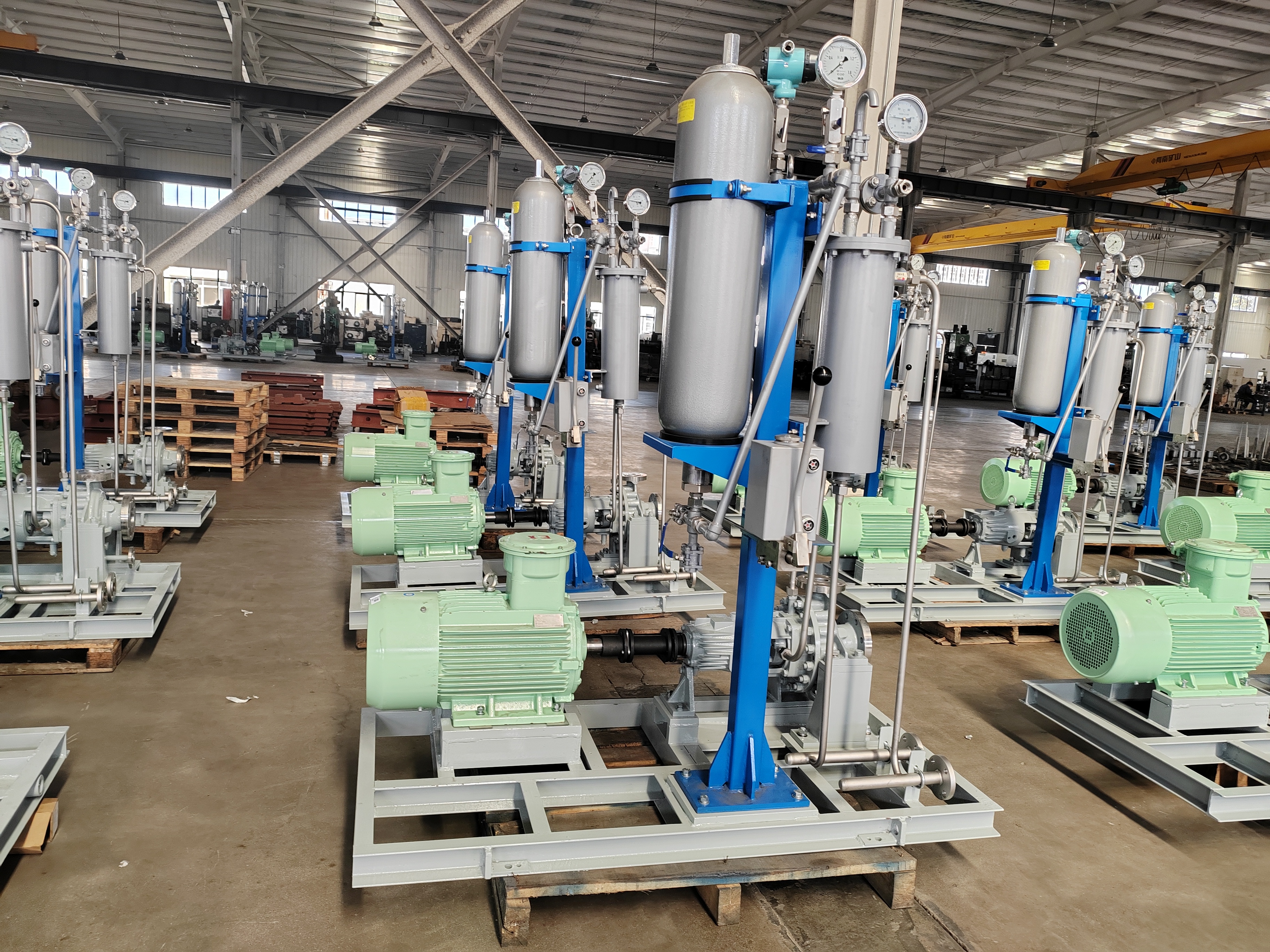

ANSI (ASME B73.1): Dimensional standards designed for interchangeability; ideal for water, corrosive chemicals, and lower-pressure/temperature applications.
API 610: Safety and reliability standards designed by the American Petroleum Institute; mandatory for volatile hydrocarbons, high pressures, and extreme temperatures.
Design Core: ANSI pumps are typically foot-mounted; API 610 centrifugal pumps are centerline-mounted to handle extreme thermal expansion.
Cost Reality: API pumps generally carry a significantly higher initial CAPEX (often 3x–5x) and longer lead times compared to off-the-shelf ANSI models.
Defining the underlying philosophy of each standard anchors the evaluation. Engineers rely on specific process pump standards to guarantee repeatability across global facilities. These frameworks exist to solve entirely different engineering challenges.
The American National Standards Institute framework focuses heavily on dimensional interchangeability. An ANSI centrifugal pump from one manufacturer drops exactly into the piping footprint of another. The suction nozzle, discharge nozzle, and baseplate bolt holes align perfectly across competing brands.
Manufacturers build these units for modularity and cost-efficiency. Facilities use them to minimize spare parts inventory. Plant managers appreciate the plug-and-play nature. You do not need to alter existing pipework when replacing a unit. This standardization lowers engineering overhead. It speeds up routine replacements during minor plant shutdowns.
The American Petroleum Institute framework focuses entirely on operational safety. Environmental containment remains paramount. Prolonged Mean Time Between Failures (MTBF) drives the internal design. Dimensions are secondary. Structural integrity takes absolute priority over interchangeability.
Engineers developed this framework to prevent catastrophic refinery accidents. You deploy these units when handling volatile, toxic, or highly flammable substances. The equipment must withstand extreme stress without leaking hazardous vapors. The philosophy accepts a larger footprint and heavier casing to guarantee personnel safety. Every design choice optimizes containment under extreme thermal and mechanical shock.
Physical construction dictates performance limits. Form follows function in fluid dynamics. Structural variations explain why one standard handles severe conditions while another fails prematurely. Understanding these mechanics prevents dangerous misapplications.
High temperatures warp industrial metals. Heat causes steel and iron to expand predictably. How a casing attaches to its baseplate determines its operational survival.
ANSI Designs: These feature a foot-mounted casing. The casing bolts directly to the baseplate at the bottom. As fluid temperatures rise, the metal expands. This heat pushes the entire housing upward. The movement misaligns the internal shaft from the motor. Uneven thermal expansion causes severe vibration and destroys mechanical seals.
API 610 Designs: These feature a centerline-mounted casing. The supports align directly alongside the horizontal centerline of the shaft. When the metal expands, it grows evenly upward and downward. This engineered symmetry preserves precise shaft alignment at extreme heat. An API 610 centrifugal pump avoids the destructive vibration found in foot-mounted models.
API designs feature significantly thicker casings. They must contain internal explosions or sudden pressure spikes. Standard ANSI casings use thinner walls. They cannot handle extreme maximum allowable working pressures (MAWP). API models manage pressures well beyond standard chemical processing limits. Thicker walls also provide a generous corrosion allowance. This extra metal adds years to the equipment's lifespan in highly corrosive environments.
Continuous operation requires robust internal components. API guidelines mandate a minimum L10 bearing life of 50,000 hours. They require exceptionally large shaft diameters. A thicker, more rigid shaft minimizes deflection under heavy hydraulic loads. Less deflection means less vibration at the stuffing box. This rigidity protects the mechanical seals from premature failure.
ANSI models feature smaller shafts. They deflect more easily under heavy operational stress. This bending movement reduces seal life if pushed beyond standard operating envelopes. The table below summarizes these structural contrasts.
Engineering Feature | ANSI (ASME B73.1) | API 610 |
|---|---|---|
Mounting Style | Foot-mounted | Centerline-mounted |
Thermal Limit | Typically < 300°F (150°C) | Often > 400°F (200°C) |
Casing Wall Thickness | Standard / Thinner | Heavy-Duty / Thicker |
Bearing Life Minimum | Standard commercial ratings | 50,000 hours minimum |
Shaft Rigidity | Standard deflection limits | Strictly minimized deflection |
Mapping physical features to operational outcomes ensures plant reliability. You must align the heavy-duty build with industry requirements. Certain environments tolerate modular utility models. Others legally demand heavily engineered containment vessels.
Facilities rely heavily on standard modularity for day-to-day transfers. A standard chemical process pump operates perfectly in predictable environments.
Ideal for: Corrosive liquids, water treatment facilities, paper mills, and food processing plants. They handle acids and alkalis brilliantly when paired with the right metallurgy.
Limits: You must restrict them to temperatures below 300°F (150°C). They strictly handle non-volatile fluids. You should never use them for hazardous hydrocarbons. Pumping hot oil through a foot-mounted casing invites severe misalignment and immediate seal failure.

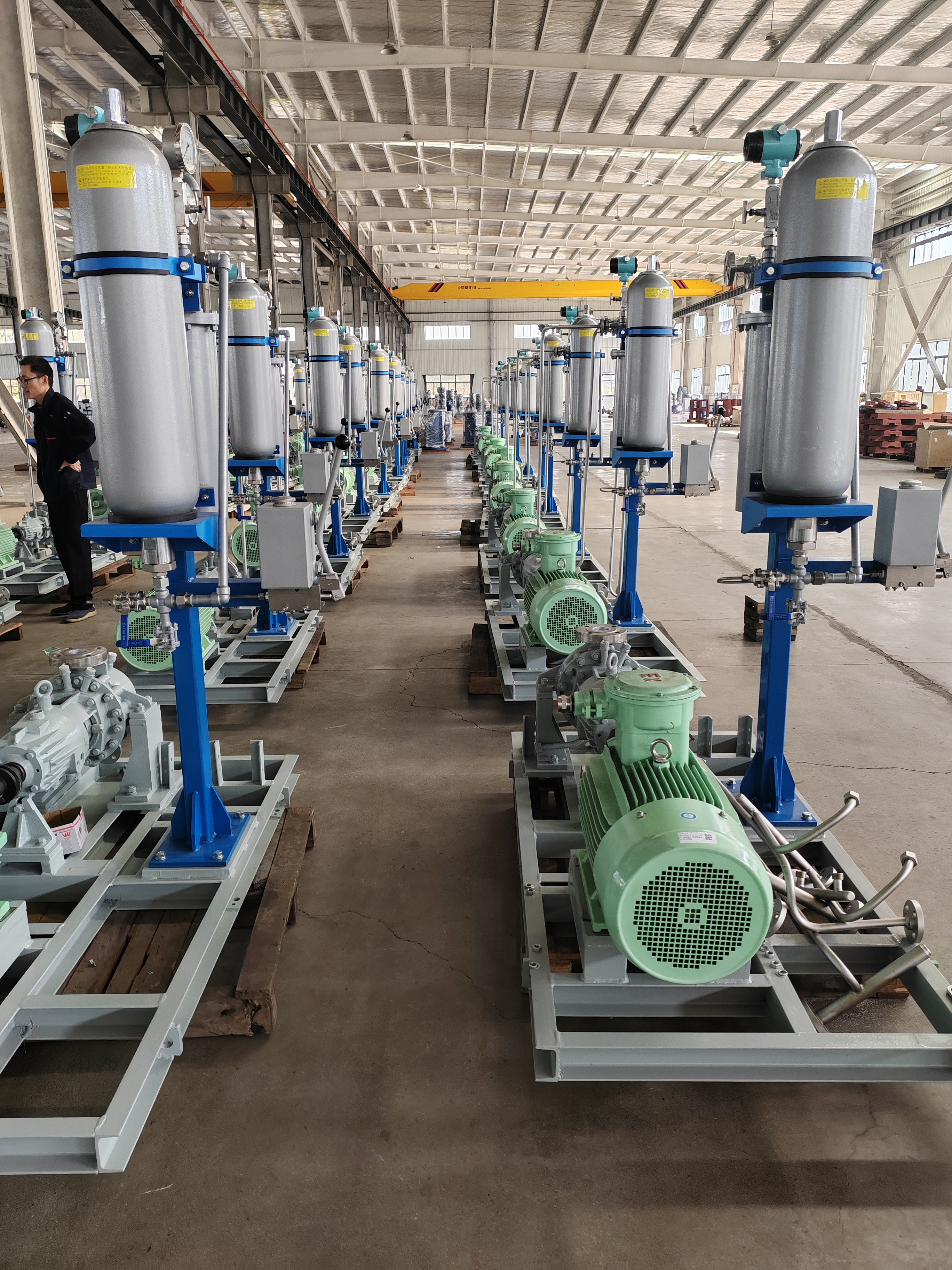

Extreme environments require over-engineered solutions. Volatile fluids demand absolute containment.
Ideal for: Oil and gas production, petrochemical processing, and refinery bottoms. They excel when moving toxic or highly flammable fluids under immense pressure.
Strengths: They remain unmatched in high-temperature operations. They routinely handle fluids exceeding 400°F (200°C). They dominate offshore drilling platforms. They provide the strict emissions containment required by environmental protection agencies. You use them when structural failure is simply not an option.
Engineering choices carry distinct operational timelines and risks. Every objective API 610 vs ANSI pump comparison must address the reality of procurement logistics. Standardized hardware scales differently than engineered-to-order hardware.
Standardized models offer rapid availability. ANSI units are mass-produced in global foundries. Manufacturers keep complete units on the shelf. This standard approach means lower initial capital outlay and exceptionally fast delivery. You can often replace a unit within days.
Conversely, API hardware is highly specialized. Manufacturers engineer them to specific project requirements. Foundries pour specialized alloys based on exact fluid demands. This bespoke manufacturing results in a significantly heavier initial investment. It also requires extended lead times. You must plan API procurement many months in advance of plant commissioning.
Hidden penalties destroy project timelines. Overspecifying wastes your immediate budget. Deploying an engineered-to-order API model for basic cooling water drains capital unnecessarily. That capital could improve other critical facility areas.
Underspecifying carries far worse penalties. Deploying a standard modular unit for volatile fluids guarantees frequent seal failures. It causes unexpected shutdowns. It triggers severe OSHA and EPA compliance violations. The subsequent fines and lost production rapidly exceed the initial savings.
Heavy-duty construction drastically lowers maintenance frequency. API models feature robust thrust bearings and rigid shafts. They extend the mean time between failures predictably. They perform reliably in harsh outdoor environments. This heavy-duty approach minimizes emergency interventions. It reduces the labor hours required for constant seal replacements. It ensures steady output over a decades-long equipment lifecycle.
Choosing the right standard requires a structured approach. Use this step-by-step decision matrix to justify your engineering choices. A clear evaluation framework prevents costly procurement errors.
Step 1: Fluid Toxicity & Volatility
Does the fluid require strict atmospheric containment? Highly toxic or flammable fluids automatically mandate an API solution. Evaluate the fluid flash point and local environmental regulations. You cannot risk volatile vapor leaks.
Step 2: Temperature & Pressure Thresholds
Does the operating temperature routinely exceed 300°F? Thermal expansion will cause severe shaft misalignment in standard foot-mounted casings. High heat explicitly requires centerline mounting. High system pressure mandates thicker casing walls.
Step 3: Regulatory & Site Compliance
Do site insurers mandate specific safety frameworks? Review your internal engineering specs. Many petrochemical process units legally require API 610 compliance for specific processing blocks. Check your insurance underwriting terms before ordering.
Step 4: Lifecycle Value Analysis
Balance the immediate project budget against unexpected shutdown impacts. Calculate the daily financial loss of production during a failure. Standard utility applications rarely justify heavy-duty upgrades. Critical path processes always justify the heavier build.
Follow these common best practices during evaluation. Always account for future capacity expansions. Do not size equipment based purely on current minimum flows. Avoid the common mistake of ignoring fluid specific gravity changes at high temperatures. Hot fluids thin out and behave differently inside the volute.
Neither standard is inherently superior. It is strictly a matter of matching the design framework to the process risk. Selecting the wrong model guarantees operational headaches and potential safety incidents.
Audit your process parameters carefully. Review flow, total dynamic head, temperature, and specific gravity.
Map your fluid volatility against strict environmental containment regulations.
Assess your maintenance team's capacity for routine seal replacements versus long-term reliability needs.
Consult with a qualified application engineer before finalizing any major procurement.
A: Yes, but strictly for non-hazardous applications. Refineries use them for utility water, cooling towers, or mild chemical dosing. You must never use them for hot, volatile, or flammable hydrocarbons due to thermal expansion risks and thinner casing walls.
A: No. API standards focus on internal design parameters, structural integrity, and safety criteria. They do not dictate standard footprint dimensions. Replacing an API unit often requires modifying the baseplate and surrounding pipework.
A: API units generally require a multiplier of 3x to 5x the initial capital of standard models. Upgrading material choices to duplex stainless steel or super alloys can push this multiplier even higher. The premium pays for engineered safety and thicker structural castings.
A: ISO 13709 serves as the international equivalent to the API 610 standard, dictating heavy-duty safety for hydrocarbons. Conversely, ISO 2858 acts as a rough functional parallel to ANSI in Europe, focusing heavily on dimensional interchangeability and modularity.
