Agitators
Tengyu Brand

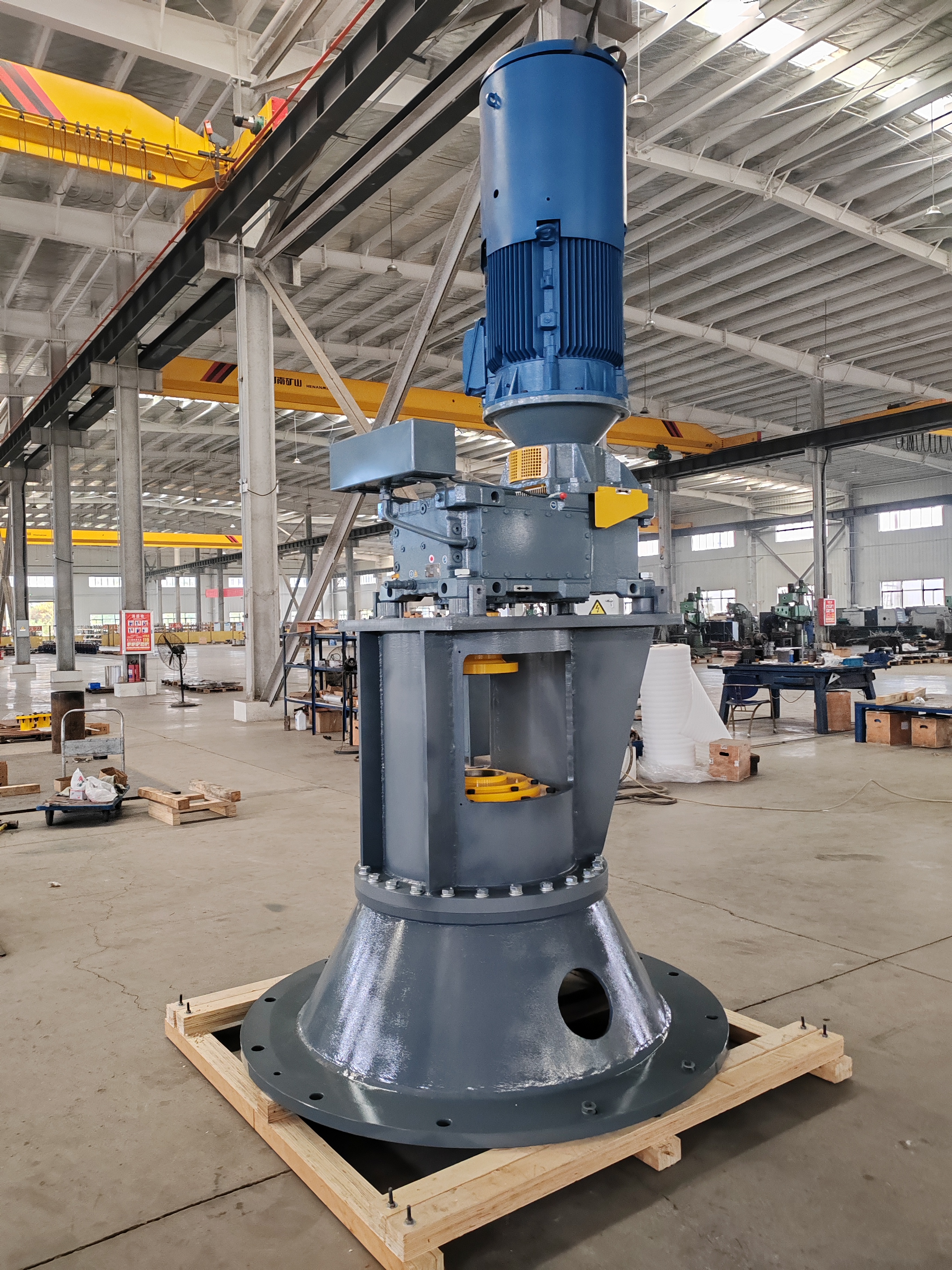

Key Features of TENGYU Industrial Circulating Mixers System
——Heavy-duty process industry mixing technology expert for 40 years
Product positioning
As the core mixing equipment of the process industry, it is designed for extreme working conditions and is suitable for:
Strongly corrosive media (pH 0-2)
High solid content slurry (≤40%)
High temperature and high pressure environment (≤200℃/1.6MPa)
Material matrix
Material grade Applicable scenarios Corrosion resistance index 316L stainless steel Conventional acid environment Cl⁻≤1000ppm 2205
duplex steel Halide-containing medium F⁻≤1.5% 2507
Super duplex steel Strong reducing acid system H₂SO₄≤60%
Titanium alloy Strong oxidizing environment HCl≤20%
Rubber lining Heterogeneous corrosion protection Wear resistance coefficient ≥0.85
Technical characteristics
Heavy-duty transmission system
Torque density ≥1 80Nm/kg
Vibration value ≤2.8mm/s (ISO10816-3 standard)
Modular design
Quick replacement system for blades/shaft seals
Support online maintenance
Intelligent monitoring
Optional:
Shaft temperature vibration monitoring
Corrosion rate sensor
Power curve analysis module
Industry application cases
Wet phosphoric acid: A 500,000 tons/year unit has been running continuously for 36 months without major repairs
Acid decomposition of titanium dioxide: The corrosion rate is controlled below 0.08mm/year
Electrolytic manganese: Stirring energy consumption is reduced by 22%
